Do-it-yourself synthesizer kit
- 1-Voice analogue

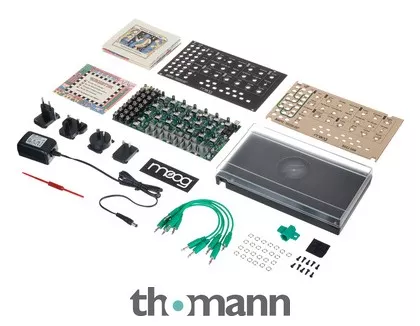

- Set includes all necessary components
- Can be used as standalone desktop synth or 44 HP Eurorack module
- Analogue voltage controlled oscillator (VCO)
- Analogue -24 dB Moog low pass ladder filter
- 4-Stage analogue envelope generator (EG)
- Analogue low-frequency oscillator (LFO)
- Pulse width modulation
- Modular utilities: Attenuators, offsets, mults and a flexible DC-coupled mixer
- Sample and hold
- Analogue voltage controlled amplifier (VCA)
- 24-Point patch bay: 3.5 mm mini jack
- One-octave keyboard with glide and scaling
- Connectors: 3.5 mm mini jack
- Dimensions (W x D x H): 228.6 x 133.4 x 38.1 mm
- Weight: 0.43 kg
- Includes external power supply and patch cable
Note: Kit to be assembled by the customer.
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2022
- Item number544471
- Sales Unit1 piece(s)
- Number Of Keys 13
- Touch-Sensitive No
- Aftertouch No
- Split Zones No
- Modulation Wheel No
- Number of simultaneous Voices 1
- Sound Engine Analogue
- MIDI interface None
- Storage Medium None
- USB-port No
- Effects None
- Arpeggiator No
- Number of Analog Outputs 1
- Digital Output No
- Display No
- Pedal ConnectionsNone
- Dimensions229 x 133 x 38 mm
- Weight0,4 kg
