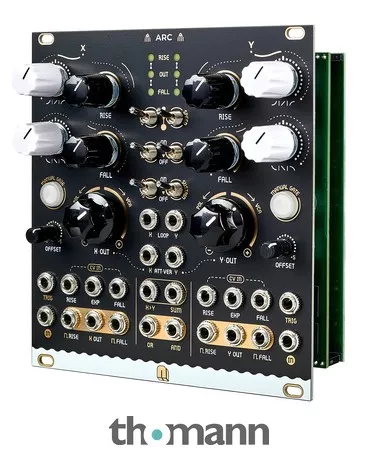

Eurorack Module
- Analogue dual function generator and modulator
- Each channel can function as an envelope generator (AD or ASR), LFO or VCO with variably adjustable waveform, voltage-controlled slew limiter and more
- Rise and fall time adjustable per channel (selectable time range: 0.5 ms – 7 min)
- Freely adjustable curve for rise and fall segment (exponential via linear to logarithmic)
- Adjustable offset (-5 V to +5 V) and attenuator/polariser with CV input per channel
- Loop mode with gate input
- Per channel: signal input, trigger input, CV inputs for rise & fall, exponential CV input, signal output and gate outputs for rise and fall phase
- Logic outputs for OR, AND, Sum and X>Y
- LED status indicators
- Power requirement: 150 mA (+12 V) / 130 mA (-12 V)
- Width: 24 HP
- Depth: 40 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number597259
- Sales Unit1 piece(s)
- Width 24 TE / HP
