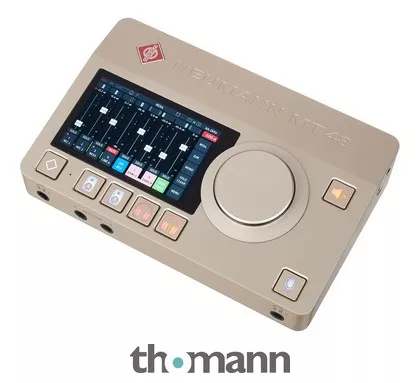

12 x 16 USB 2.0 Audio Interface
- Individually configurable monitoring controller (mono, stereo, surround and immersive audio)
- Prepared for DANTE – optional Audinate licence is required for DANTE operation (not included)
- Microphone preamplifier with 136 dB(A) dynamic range
- Preamplification up to 78 dB
- Integrated DSP for EQ and dynamics processing on each channel and reverb effect
- Touchscreen with intuitive user interface
- Fully-fledged digital mixing console
- Dual Output Technology (pre-FX and post-FX recording simultaneously)
- +48 V phantom power
- AES67/RAVENNA compatible
- Tripod mounting possible, thread on bottom side
- Two mic/line inputs: Combo XLR/jack 6.3 mm
- Two line inputs: 6.3 mm jack
- Two line outputs: XLR
- Two line outputs: 6.3 mm jack
- Two stereo headphone outputs
- MIDI adapter input and output: 6.3 mm jack (suitable adapter: Art.569910 – not included)
- Ethernet
- ADAT / SPDIF input and output optical
- USB-C port for data transfer
- USB-C connector for external power supply
- Format: Desktop
- Dimensions (W x H x D): 200 x 128 x 40 mm
- Weight: 1.58 kg
- Includes soft case, USB-A and USB-C data cable and external power supply with USB-C connection
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2024
- Item number603005
- Sales Unit1 piece(s)
- Recording / Playback Channels 12×16
- Number of Mic Inputs 2
- Number of Line Inputs 4
- Instrument Inputs 2
- Number of Line Outs 4
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 2
- Number of ADAT Connectors 2
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 1
- Other Connectors USB-C
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 32 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 2.0
- Width 200 mm
- Depth 128 mm
- Height 40 mm
- Connection Format USB port Type C
- Included in deliveryPower Supply, USB-A to USB-C Cable, 2x USB-C Cables, Gigbag
- Zero latency monitoringYes
