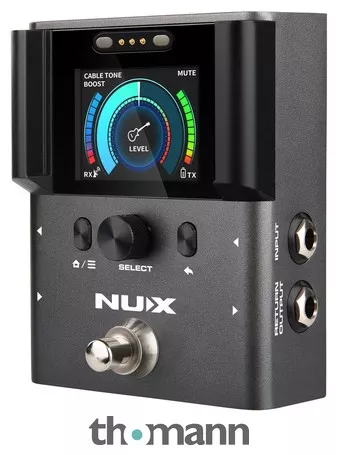

Wireless System for Electric Guitar and Electric Bass
- Compact transmitter + pedal receiver
- WiFi 2.4 GHz
- Built-in tuner or boost functions activated via the receiver footswitch
- Built-in effects loop on the pedalboard receiver for buffered pedal signal paths
- Balanced XLR D.I. output on the receiver for direct connection to a mixing desk/audio interface
- Designed for electric guitars, electric basses, electro-acoustic guitars, electric ukuleles, etc.
- Optional cable tone function that provides the warm sound of a jack cable
- Automatic pairing of transmitter and receiver in just a few seconds
- Transmitter can be charged by placing it on the receiver screen (or via USB-C)
- Tuning modes: chromatic, standard guitar, guitar with compensation and bass
- Tuning range: F0 to C8- Tuning accuracy: ±1 hundredth of a semitone
- 2.4 GHz high-definition 24 bit / 48 kHz digital audio transmission
- Frequency response: 20 – 20 Hz
- Booster: 0 dB – 12 dB
- Output level adjustment range: Mute, -64 to 0 dB
- Dynamic range: 122 dB
- Latency : 2.5 ms (in low-latency mode for short ranges) to 8.7 ms (in stable mode for short ranges)
- Indoor range : 30 to 60 m (depending on environment)
- Outdoor range : 20 to 50 m (depending on environment)
- Transmitter battery : Li-Po 3.7 V / 500 mAh
- Battery life: approx. 6.5 hours
- Receiver power supply : 7 to 12 V / 500 mA mini (9V adapter supplied)
- Audio cable: 6.35 mm jack to 3.5 mm mini jack (sealed) supplied
- USB-C cable supplied (charging the transmitter / updating the firmware)
- Weight transmitter: 63 g
- Receiver dimensions (W x D x H): 72.5 x 49.3 x 23 mm
- Weight of the receiver: 500 g
- Receiver dimensions (W x D x H): 122 x 95 x 60 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2024
- Item number583717
- Sales Unit1 piece(s)
- Guitar Channels 1
- Transmission Format Digital
- Frequency 2400 MHz
- Transmitter Type Pocket Transmitter
- Receiver Type Pedalboard
- Mountable Antenna No
- Charging System Yes
- Integrated Battery Yes
- Dante No
- Battery Status DisplayYes
- Transmitter battery poweredYes
- Output6,3 mm Jack unbal.
- Receiver Width in mm112 mm
- Receiver Height in mm95 mm
- Receiver Depth in mm60 mm
- RackkitNo
- Receiver Weight in kg0,5 kg
