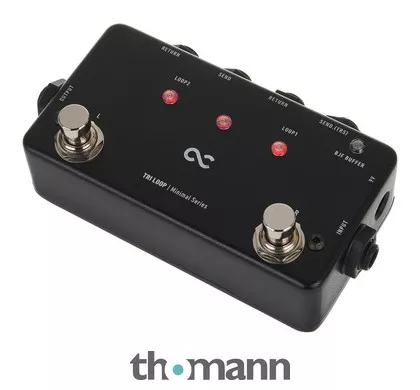

Selector or momentary footswitch for effect pedals
- 4 Selectable modes for different applications: Red, Bright White, Blue, Green
- Footswitches provide control over two independent send/return loops
- Momentary circuit can be used as Normally Closed (NC) or Normally Open (NO)
- Switchable buffer
- 2 Footswitches: L and R
- Status LEDs
- Metal housing
- True bypass
- 1x Input: 6.3 mm mono jack
- 1x Output: 6.3 mm mono jack
- 1x Send: 6.3 mm mono jack
- 2x Return: 6.3 mm mono jack
- 1x TRS send: 6.3 mm stereo jack
- Power supply connection: Barrel connector 5.5 x 2.1 mm (negative polarity inside)
- Power supply via 9V DC mains adapter (not included in delivery)
- Power consumption: max. 100 mA
- Dimensions (L x W x H): 65 x 120 x 50 mm
- Weight: 250 g
Note: Battery operation not supportedNote Register your product at www.w-distribution.de/Warranty and extend the warranty to 4 years.
NoteRegister your purchase at shop.warwick.de/en/warranty-registration for an extended warranty of 4 years.3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2022
- Item number537656
- Sales Unit1 piece(s)
- Type Looper/Switcher
- LED Display Yes
- PSU Connector Yes
- Shape Floor Effects Pedal
- MIDI Interface No
