Ortofon Concorde DJ S single
DJ S has a fine spherical stylus and a special developed and extremely balanced cantilever. Not only does the cartridge have a most sufficient tracking ability, it is also nearly unbreakable and provides the DJs with the most needed stringency. Furthermore, it equals very low record wear, an advantage for busy DJ.
The DJ series of cartridges are great for any style of music, and has been a favored choice of DJs around the world.
Features:
Improved tracking
Accurate sound reproduction
A low wear stylus design
Excellent groove handling even with less weight applied
Technical data
Output voltage at 1000Hz, 5cm/sec.: 6 mV
Channel balance at 1kHz: 2 dB
Channel separation at 1kHz: 23 dB
Channel separation at 15 kHz: 15 dB
Frequency range at -3dB: 20-20.000 Hz
Frequency response: 20-18.000 Hz +3 dB/-2 dB
Tracking ability at 315 Hz at recommmende tracking force: 80 m
Compliance, dynamic lateral: 9 m/mN
Stylus type: Spherical
Stylus tip radius: R 18 m
Tracking force range: 2,0-4,0 g (20-40 mN)
Tracking force recommended: 3,0 g (30 mN)
Tracking angle: 20
Internal impedance, DC resistance: 750 Ohm
Internal inductance: 450 mH
Recommended load resistance: 47 kOhm
Recommended load capacitance: 200-600 pF
Cartridge weight: 18,5 g

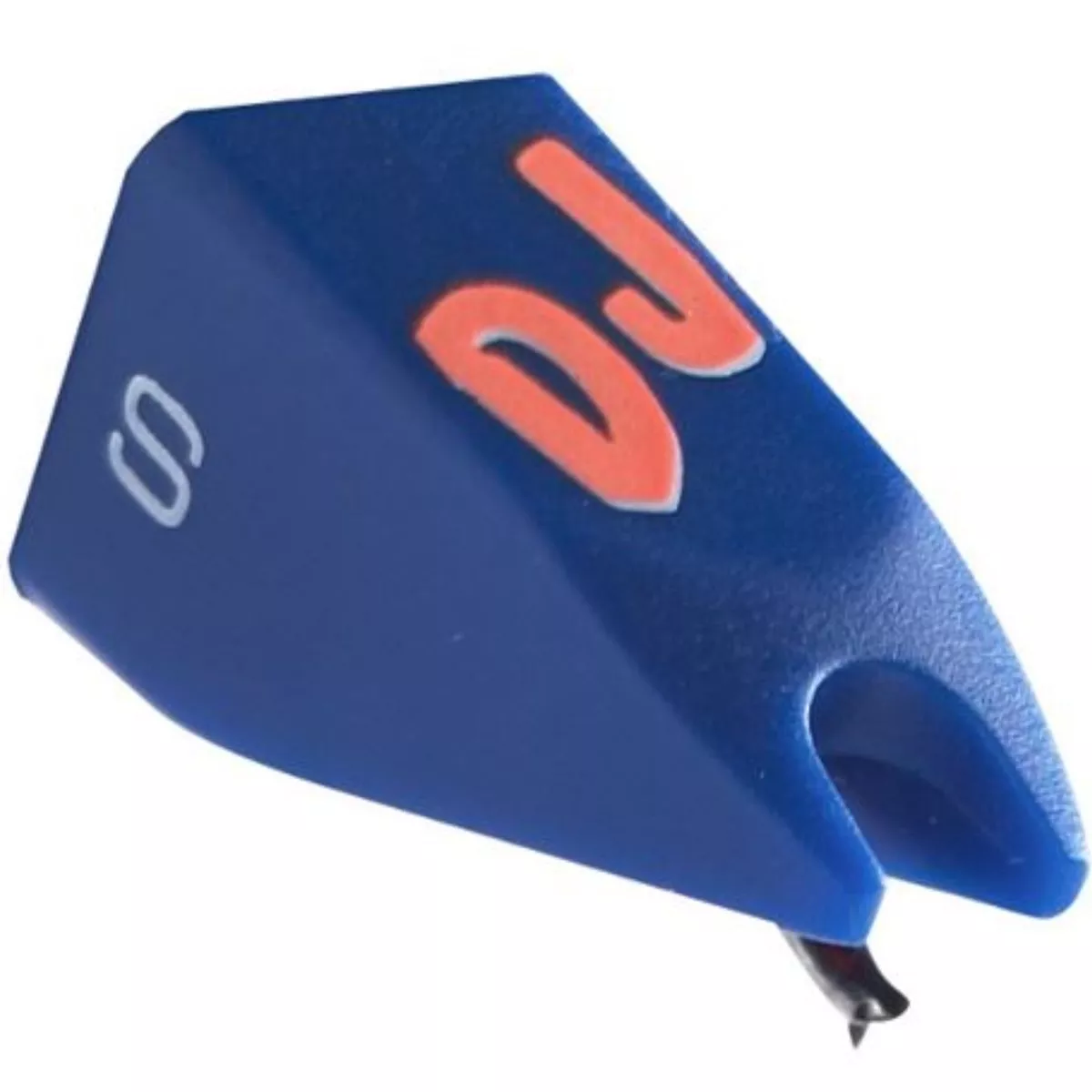

Replacement stylus unit: DJ S
