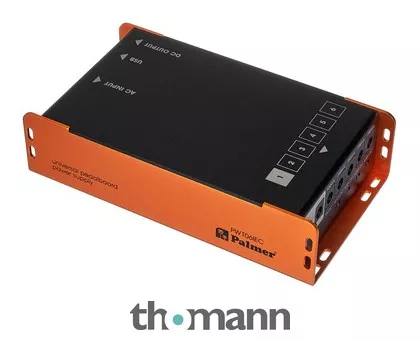

Effect Pedal Power Supply Unit with USB
- One output with adjustable voltage from 6 – 18 V
- Six individually isolated 9V DC hollow pin outputs with centre negative
- Non-isolated 9V DC hollow pin output with 2000mA
- Short-circuit and overload protection for each individual output
- Max. output power: 36 W
- Max. power consumption 54 W
- Controls: Power switch, output voltage selector and switch
- Includes mains cable, 9 x DC cable (30 / 60 cm) and 4 x rubber feet
- Dimensions (W x D x H): 168 x 93 x 42 mm
Connectors:
- Output 1 – 6: 18 V (250 mA max)
- Output 2: 9 V (500 mA max)
- Output 3 – 4: 9 – 12 V (250 mA max)
- Output 5 – 6: 9 – 18 V (250 mA max)
- Non-isolated DC output 9 V (2000 mA max)
- USB-C and USB-A outputs with a charging power of up to 18 W
- Note: Ambient temperature (in operation) 0 – 40 °C, relative humidity <80 % (non-condensing)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2023
- Item number573142
- Sales Unit1 piece(s)
- DC/AC AC/DC
- Output current in mA 2000 mA
- 9 V Yes
- 12 V Yes
- 18 V Yes
- Secondary voltage Yes
- Multi-output power supply Yes
