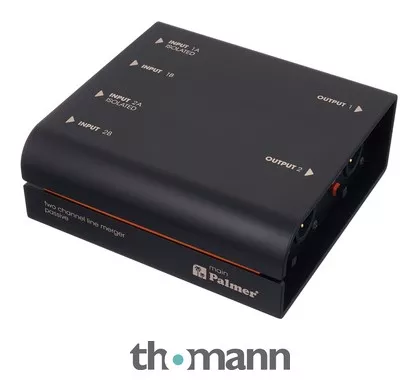

Passive 2 Channel Line Summing Unit
- Interconnection of 2 units possible
- Transfer ratio: 4:2
- Inputs: 4 x XLR
- Outputs: 2 x XLR
- Switchable ground lift
- Max. input level: +20 dBu
- Galvanic isolation through transformer
- No power supply necessary
- Housing material: extruded aluminium
- Rubber feet
- Dimensions (W x H x D): 140 x 50 x 128 mm
- Weight: 0.8 kg
- Incl. inscription label
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2023
- Item number569847
- Sales Unit1 piece(s)
- Number Of Channels 2
- Inputs 4
- Outputs Per Channel 1
- +48 V Phantom power No
- Grd Lift Switch Yes
- Pad Switch No
- Headphone Outputs No
- Design Desktop
- Multi-Channel UnitYes
- Channels2
- Active / PassivePassive
- Gnd/Lift switchableYes
