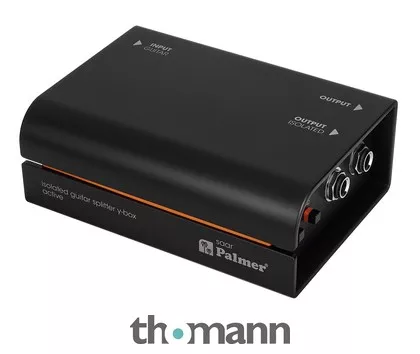

Active Signal Splitter Y-Box
- For Guitar and Bass
- Distributes the guitar/bass signal to 2 outputs simultaneously
- Frequency range: 20 – 20,000 Hz
- Ground Lift switch
- Phase Reverse switch
- Active FET input circuit
- Unbalanced input: 6.3 mm jack TS
- Unbalanced output: 6.3 mm jack TS
- Input impedance: 1 kOhm
- Output impedance: 64Ohm
- Power supply: 9 V DC mains adapter or 9 V battery
- Powder-coated continuous cast aluminium housing
- Dimensions (W x H x D): 50 x 140 x 98 mm
- Weight: 0.57 kg
- Colour: Black
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2024
- Item number598454
- Sales Unit1 piece(s)
- Number Of Channels 1
- Inputs 1
- Outputs Per Channel 1
- +48 V Phantom power No
- Grd Lift Switch Yes
- Pad Switch No
- Headphone Outputs No
- Design Desktop
