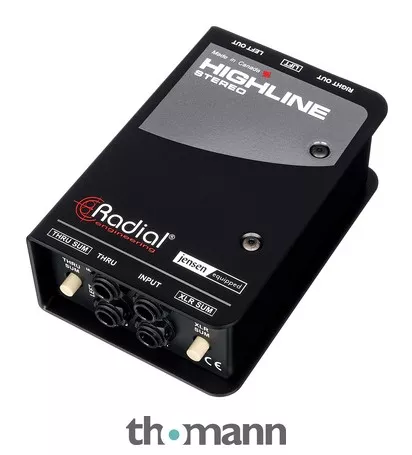

Passive Line Insulator
- Balances the signal to eliminate hum caused by ground loops
- Frequency range: 10 Hz – 70,000 Hz
- Switchable Gnd/Lift, Thru SUM and XLR SUM
- 1:1 transmission with precision-wound Jensen transformer
- No external power supply required
- Inputs: Four 6.3 mm jacks (including two Thru for looping through the input or 2nd input)
- Outputs: Two XLR male
- Dimensions (W x D x H): 84 x 127 x 45 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2025
- Item number613263
- Sales Unit1 piece(s)
- Multi-Channel Unit Yes
- Channels 2
- Active / Passive Passive
- 19″ No
- Pad switchable No
- Gnd/Lift switchable Yes
- Powered by battery No
- Speaker Simulation No
