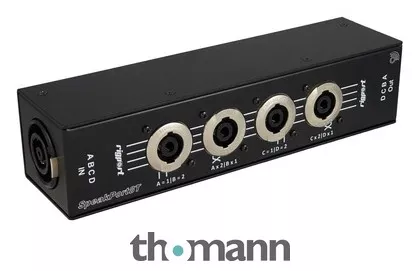

Speaker Twist Breakoutbox
- Speaker Twist (NLT8 –> NLT4) breakout box and split box
- With 4 side outlets (1 x NLT8M> 2 x NTL4F split) –> NLT8: Pair 1 and 2: 1 x 1:1 Out and 1 x BiAmped Out (1+ – and 2+ – swapped, e.g. to swap top and bass channel amp), –> NLT8: Pair 3 and 4: 1 x 1:1 Out and 1 x BiAmped Out (1+ – and 2+ – swapped, e.g. to swap top and bass channel amp)
- Continuing NL8M socket for looping through
- Secure locks
- Variable positioning in the truss
- Quick cabling
- Ideal for extending or distributing various speakers, e.g. in ELA applications.
- Easy to combine
- Suitable RigPort Safety for secondary protection available under item no. 475805 (not included)
- Input: Speaker Twist NL8TM
- Output: 4 x Speaker Twist NLT4
- Feed-through/output: Speaker Twist NLT8M
- Max. power: 30 A
- Protection class: IP20
- Conductor area: 4 mm²
- Max. temperature: 55 °C
- Material: Sheet steel
- Dimensions: 220 x 40 x 70 mm
- Weight: 1 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number577478
- Sales Unit1 piece(s)
- Type Socket
- Chassis Connector No
- Connector 1Speaker Twist4-pol female
- Connector 2Speaker Twist8-pol male
