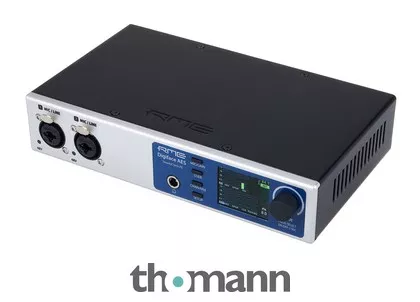

USB 2.0 Audio Interface
- 192 kHz
- 14 Inputs and 16 outputs
- Built-in sample rate converter can be switched to one of the 3 inputs
- SteadyClock FS
- Stand-alone operation possible
- Up to 6 unit configurations can be saved
- Built-in parametric EQ
- Flexible playback/monitoring via TotalMix FX
- Colour display
- Bus-powered
- +48 V phantom power switchable
- Remote controllable via ARC USB (not included)
Connectors:
- 2 XLR / 6.3 mm jack combo mic/line inputs
- 2 XLR line outputs
- XLR AES input and output
- Coaxial SPDIF input and output
- Optical ADAT / SPDIF input and output
- MIDI input and output
- USB 2.0
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2023
- Item number558957
- Sales Unit1 piece(s)
- Recording / Playback Channels 14×16
- Number of Mic Inputs 2
- Number of Line Inputs 2
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 2
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 1
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply Yes
- USB Version 2.0
- Width 215 mm
- Depth 44 mm
- Height 130 mm
- Connection Format USB port Type B
- Included in deliveryPower Supply, Power Cable, USB-A to USB-B Cable, MIDI In/Out Adaptor Cable
- Zero latency monitoringYes
