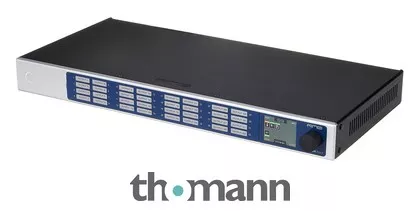

32-Channel High-End DA Converter AVB
- 24 Bit / 192 kHz
- Fully balanced circuit design
- Signal-to-noise ratio: 120 dBA
- Large, three-colour backlit channel display with peak / RMS display
- 2″ display with rotary knob for complete device control
- SyncCheck and ICC
- Five preset memories
- Channel labelling fields with magnetic cover
- Redundant power supply
- Format: 19″ / 1U
- Dimensions (W x H): approx. 483 x 44 mm
- MILAN certified
Connections:
- 32 analogue outputs via 4x Sub-D 25-pin connectors (up to +24 dBu)
- Two AVB interfaces: RJ45
- MADI input and output: Coaxial BNC (optional optical SFP module available)
- Word Clock input and output: BNC
- MIDI input and output (via adapter)
- USB 2.0 for remote control (remote control not included)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2023
- Item number570188
- Sales Unit1 piece(s)
- Amount Of Channels 32
- AD Conversion No
- DA Conversion Yes
- Max. Resolution Rate in Bits 24 bit
- Max. Sampling Rate in kHz 192 kHz
- S/PDIF Connecor No
- AES/EBU Connector No
- ADAT No
- Word clock Yes
- Number of analog inputs 0
- Number of Analog Outputs 32
- Headphone connection No
- Special FeaturesMADI, AVB, redundant PSU
