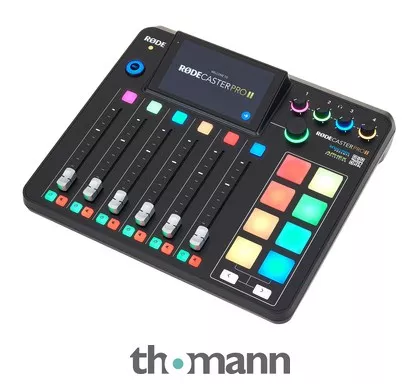

Audio Production Studio
- Designed specifically for podcasters, streamers, musicians and content creators
- Four XLR / 6.35 mm jack combo inputs for microphones, guitars, bass and keyboards
- 48 V phantom power
- Eight programmable SMART pads with eight banks and two bank change buttons (for 64 actions) for triggering audio, effects, MIDI commands, mixer actions and vision switching
- Low-noise Revolution high-gain preamps: +76 dB
- Dual USB audio interface for simultaneous connection of two computers or mobile devices
- Wideband Bluetooth for first-class voice quality and wireless monitoring
- Nine freely assignable channels for individual configuration of mixer
- Six faders
- Three virtual faders
- Assignable signal sources: 4x XLR/6.35 mm, Bluetooth, USB 1, USB 2, SMART Pad Audio
- 4 GB internal memory for SMART Pad Audio
- 5.5″ HD touchscreen with haptic feedback
- Encoder with touch function for navigation and parameter settings
- Programmed channel presets and VOXLab Quick Editor
- APHEX signal processing: Aural Exciter, Big Bottom, Compellor
- Studio effects: EQ, Compressor, Reverb, Delay, Pitch Shift, Robot Voice, Mix-Minus and Ducking
- Stereo and multitrack recording to microSDHC or microSDXC card (memory card not included), USB storage medium (exFAT, at least 100 MB/s) or computer
- Four headphone outputs: 6.35 mm TRS jack ( 250 mW @ 32 Ohm)
- Two balanced line outputs: 6.35 mm jack
- Wi-Fi (802.11g/n/ac 2.4 GHz) and Ethernet connection (100/1000)
- Free RØDE CallMe Lite calling function via Wi-Fi or Ethernet (firmware update required)
- System requirements for mobile devices: Android 9.0
- Dimensions: 305 x 270 x 60 mm
- Weight: 1.95 kg
- Includes power supply and 2 m USB-C to USB-C cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2022
- Item number544389
- Sales Unit1 piece(s)
- Recording / Playback Channels 2×16
- Number of Mic Inputs 4
- Number of Line Inputs 4
- Instrument Inputs 4
- Number of Line Outs 2
- Headphone Outs 4
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 1
- Other Connectors USB-C
- MIDI interface Yes
- Word Clock 0
- Max. Sampling Rate in kHz 48 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 3.0
- Width 305 mm
- Depth 270 mm
- Height 60 mm
- Connection Format USB port Type C
- Number Of Tracks16
- Simultaneous Recording: Amount Of Tracks2
- EffectsYes
- Storage MediummicroSD/microSDHC/microSDXC
- Phantom powerYes
- XLR Connectors4
- Jack Connectors4
- MIDI InterfaceNone
- USB connectionYes
- Digital ConnectionsUSB
- Miscellaneous ConnectorsNone
- Headphone connectionYes
- OptionsBluetooth
- Included in deliveryPower Supply, Power Cable, USB-C Cable
- Zero latency monitoringYes
