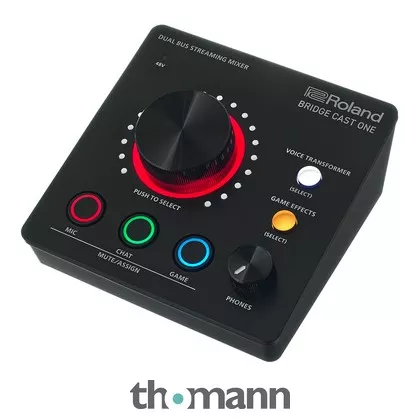

Dual Bus Streaming Mixer
- Compact USB audio interface for gamers, content creators and YouTubers
- Simple integration of up to three audio, video and streaming sources
- 24 Bit / 96kHz audio processing
- Dual bus architecture: two independent mixes can be created for online streaming and own monitoring
- Integrated 3-channel mixer for microphone and two streaming channels
- Controllable via app
- Microphone input (XLR) with phantom power (+48V) and up to +75 dB gain
- 32-Bit DSP for calculating effects
- Noise reduction, compressor, equaliser, de-esser, reverb and high-pass filter for microphone channel as well as voice effects from the Roland VT series
- Further effects: De-esser and compressor for chat channel
- Equaliser and limiter for game channel and delay for streaming output for synchronisation
- BRIDGE CAST app for further settings such as voice effects, equaliser presets
- Integration of licence-free background music and sound effects via the Roland Cloud and more
- Illuminated push encoder
- Mute button for mixer channels
- Selection button for Voice Transformer and game effects
- Volume control for headphone output
- USB-C port for power supply (requires 5V DC, 900 mA) and for connecting PC, Mac and consoles (compatible with Sony PlayStation 5 and Nintendo Switch)
- Line output: 3.5 mm stereo jack
- Headphone/headset jack: 3.5 mm stereo jack, CTIA
- Aux input: 3.5 mm stereo jack
- Dimensions: (W x D x H) 111 x 109 x 56 mm
- Weight: 275 g
- Includes Quick Start Guide and USB-C cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceSeptember 2024
- Item number600498
- Sales Unit1 piece(s)
- Recording / Playback Channels 5×4
- Number of Mic Inputs 1
- Number of Line Inputs 2
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB-C
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 3.0
- Width 111 mm
- Depth 109 mm
- Height 56 mm
- Connection Format USB port Type C
- TypeConverter
- Included in deliveryUSB-C Cable
- Zero latency monitoringYes
