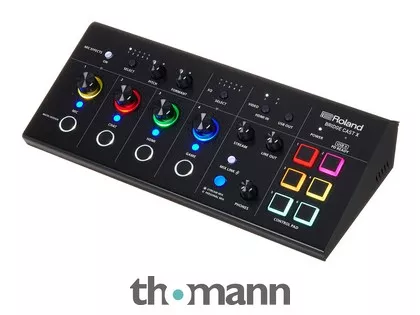

Dual Bus Audio Mixer und Video Streaming Schnittstelle
- Professional interface for online gamers, podcasters and vloggers
- Seamless integration of multiple audio, video and streaming sources
- Dual bus architecture: two independent mixes can be created for online streaming and own monitoring
- Two HDMI ports for games consoles, cameras and other devices
- HDMI Thru for external monitor
- Two USB-C ports for PC, smartphones and tablets
- 6 Programmable and illuminated pads for sound effects, presets, OBS shortcuts and more
- 32-Bit hardware DSP for effects calculation
- 24 Bit / 96kHz audio processing
- Integrated 4-channel mixer for microphone and three streaming channels (Aux, Chat, Game), each with assignable button and illuminated rotary control
- Microphone input (XLR) with phantom power (+48V)
- Noise reduction, compressor, equaliser, de-esser, reverb and high-pass filter for microphone channel as well as voice effects from the Roland VT series
- Further effects: De-esser and compressor for chat channel, equaliser for game channel, and delay for streaming output for synchronisation.
- BRIDGE CAST app for further settings such as voice effects, equaliser presets, assignment of buttons and knobs to different functions, backlight colour and more
- BGM Cast allows the integration of royalty-free background musik and sound effects via the Roland Cloud and BRIDGE CAST App
- Separate volume controls for streaming, line out and headphone out
- USB-C port for power supply (5 V DC, 3.0 A – power supply not included)
- Headphone/headset jack: 3.5 mm stereo jack, CTIA
- Aux input: 3.5 mm stereo jack
- Line output: 3.5 mm stereo jack
- Solid metal housing
- Dimensions (W x D x H): 269 x 130 x 70 mm
- Weight: 1.35 kg
- Includes Quick Start Guide and 2x USB-C cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2024
- Item number584407
- Sales Unit1 piece(s)
- Recording / Playback Channels 11×9
- Number of Mic Inputs 1
- Number of Line Inputs 2
- Instrument Inputs 0
- Number of Line Outs 2
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors HDMI
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 96 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered Yes
- Incl. power supply No
- USB Version 3.0
- Width 269 mm
- Depth 130 mm
- Height 70 mm
- Connection Format USB port Type C
- TypeConverter
- Included in delivery2x USB-C Cables
- Zero latency monitoringYes
