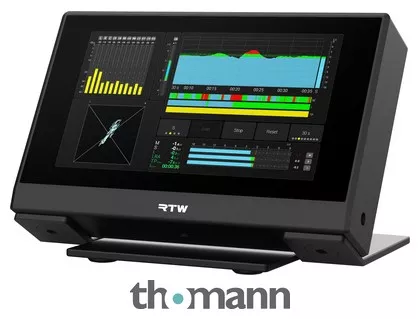

Loudness Meter
- For Ravenna-based audio networks
- User-configurable desktop device
- 5″ Touch display
- Supports 16 Ravenna/AES67/ST 2110 channels for stereo, surround and immersive audio formats, including 5.1 and 7.1.4 configurations
- Vectorscope, PPM, True Peak, Loudness, LRA, Chart and Moving Coil displays
- Numerical display of all relevant values: M, S, I, LRA, TPmax, Mmax, Smax, IDauer, Sd, Id, LRAd, D%
- Customisable screen views (View)
- Web-based user interface
- Sampling rates up to 96 kHz
- Power supply via Ethernet (PoE – IEEE 802.3af-compliant)
- Dimensions (WxHxD): 149.5 x 94 x 92.7 mm
- Weight: 0.7 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2026
- Item number609591
- Sales Unit1 piece(s)
- Number Of Monitoring Outputs (Stereo) 16
- Headphone connection 0
- Talkback Function No
- Built-in AD / DA converter No
- Incl. Remote control No
- Level Meter Yes
- Number of 2 track inputs 0
- Summing Function No
- Surround Yes
- Design Desktop
- Amount of channels16
- Analogue InputsNone
- Correlation MeterYes
- DisplayTouchscreen
