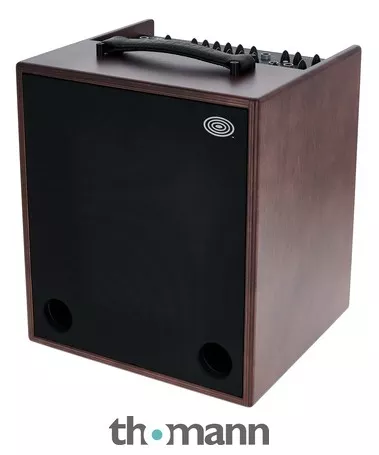

Acoustic Amplifier
- 5 Channels
- WPower: 240
- Loudspeaker configuration: 8″ woofer and 1″ dome tweeter
- optimised 2-way bass reflex constructionO
- Class A preamplifier without integrated circuits and negative feedback
- Frequency range: 40 – 20,000 Hz
- Channel 1 controls: Gain, Bass, Mid Frequency, Mid Gain, High, Rev/Aux, Volume
- Switch channel 1: phase, 10 V electret microphone supply, low-pass filter (warm)
- Channel 2 controls: Gain, Resonance Filter, Bass, Mid, High, Rev/Aux, Volume
- Switch channel 2: 24 V phantom power, 10 V electret microphone supply
- Channel 3 controls: Gain, Mid Frequency, Mid Gain, High, Rev/Aux, Volume
- Switch channel 3: 24 V phantom power supply
- Channel 5: Volume
- Master Volume, DI-Out Volume
- Switch: Low-Cut, Mute
- Effects: Decay, Reverb
- Dimensions (B x T x H): 324 x 297 x 380 mm
- Weight: 12.5 kg
- Colour: Wood
- Made in Switerland
Connections:
- Instrument input: 6.3 mm jack
- Microphone input: XLR
- Stereo input: 3.5 mm stereo jack
- Input L&R: 6.3 mm jack
- Insert: 6,3 mm Klinke
- Line output: 6.3 mm jack
- AUX output: 6.3 mm jack
- DI output: XLR
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2022
- Item number537615
- Sales Unit1 piece(s)
- Power in Watts 240
- Speaker size 1x 8″ + Tweeter
- Channels 5
- Reverb Yes
- Effects Processor No
- External FX Loop Yes
- Microphone Input Yes
- Phantom Power Yes
- Line Input Yes
- Battery Operation No
- Footswitch connection No
- Incl. Footswitch No
- Weight in kg12,5 kg
