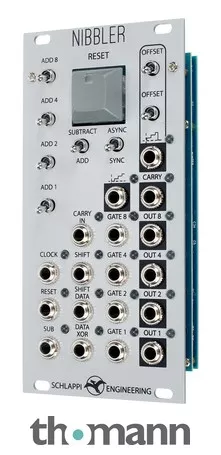

Eurorack Module
- Digital 4-bit accumulator for generating gate signals, rhythm patterns and control voltages
- The binary CMOS shift register counts a value (0 – 15) adjustable via toggle switch for each pulse at the clock input and adds or subtracts this value to the internal memory
- Reset input and button (Cherry MX Braun) for deleting the register
- Synchronous (clocked) or asynchronous counting mode selectable
- Comprehensive control manipulation of the counting process and the internal register via the Clock, Sub, Carry In, Shift, Shift Data and Data XOR inputs
- Gate input/output for each bit
- Two outputs for stepped control voltages (range: 0V to +10V), one of which has a switchable phase offset
- Application examples: Clock divider, drum sequencer, lo-fi oscillator, frequency divider, noise source and many more
- Power consumption: 37mA (+12V) / 17mA (-12V)
- Width: 12 U
- Depth: 28 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2024
- Item number581835
- Sales Unit1 piece(s)
- Width 12 TE / HP
