Fully Digital Portable UHF Wireless System
- For video applications with ME 2 condenser lavalier microphone and EW-DP SKP plug-on transmitter
- Frequency range R1-6: 520 – 576 MHz
- Bluetooth for synchronisation and control
- Intelligent notifications for error management
- Battery life: Transmitter up to 12 hours / receiver up to 7 hours
- Digital plug-on transmitter with +48V phantom power
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Transmitter power: 10 mW
- Up to 56 MHz switching bandwidth
- Receiver stackable and magnetically mountable
- Receiver charging possible via USB-C port
- Smart Assist app for monitoring and control
- Receiver dimensions (W x H x D): 86 x 28 x 67 mm
- Pocket transmitter dimensions (W x H x D): 63 x 80 x 20 mm
- Receiver weight: 140 g
- Weight of pocket transmitter: 120 g

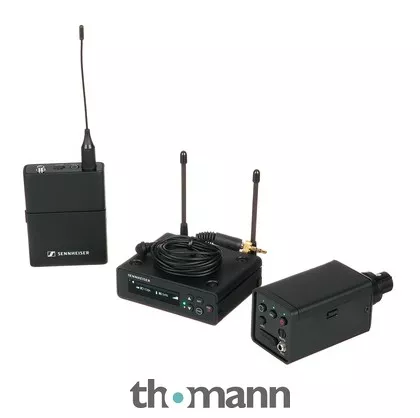

- Includes ME 2 clip-on microphone (omnidirectional), EW-DP SKP digital plug-on transmitter, mounting kit, BA 70 Li-ion battery, two AA batteries, 3.5 mm TRS mini jack to 3.5 mm TRS mini jack (lockable) cable, 3.5 mm TRS mini jack (lockable) to XLR male cable and USB-C charging cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2023
- Item number564167
- Sales Unit1 piece(s)
- Capsule Type Condenser
- Microphone Colour Black
- Receiver Type mobile
- Frequency 520 MHz – 576 MHz
- Transmission system Digital
- Channels Lapel Microphone 1
- Dante No
- Frequency BandUHF
- Transmitting SystemDigital
- Polar Patternomnidirectional
- DiversityYes
- Wireless Channels1
- Handheld Transmitter0
- Mic Model141903
- Removeable AntennaYes
- Pocket Transmitter1
- Transmitter powered with2x AA
- Microphone Plug Transmitter1
- Receiver Width in mm86 mm
- Power TransmitterLi-ion Battery
- Receiver Height in mm28 mm
- Multi ChannelNo
- Microphone TypeLapel
- Receiver Depth in mm67 mm
- Receiver Weight in kg0,14 kg
- Transmitter Input3,5mm TRS
- Hot Shoe AdaptorNo
- Transmitting Power in mW10 mW
- Switching Bandwidth in MHz56 MHz
- Power Receiver2x AA
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaYes
- Battery Status MonitorYes
- Output3,5mm TRS
- Charging SystemOptional
- RackkitNo
