Fully Digital Portable UHF Wireless System
- For video applications
- With ME 4 condenser lavalier microphone
- Frequency range U1/5: 823 – 832 / 863- 865 MHz
- Bluetooth for synchronisation and control
- Smart Notifications for troubleshooting and system guidance
- Battery life: transmitter up to 12 hours/receiver up to 7 hours
- Dynamic range: 134 dB
- System latency: 1.9 ms
- Transmitter power: 10 mW
- Up to 56 MHz switching bandwidth
- Receiver stackable and magnetically mountable
- Receiver charging possible via USB-C port
- Smart Assist app for monitoring and control
- Receiver dimensions (W x H x D): 86 x 28 x 67 mm
- Pocket transmitter dimensions (W x H x D): 63 x 80 x 20 mm
- Receiver weight: 140 g
- Weight of pocket transmitter: 120 g

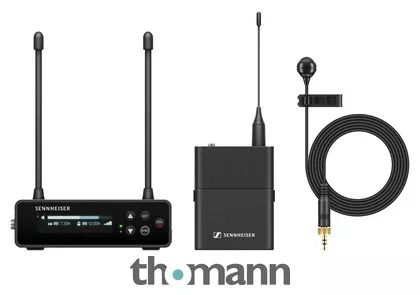

- Includes EW-DP EK digital portable single-channel receiver, EW-D SK digital bodypack transmitter, ME 4 lavalier microphone (cardioid polar pattern), mounting kit, BA 70 Li-ion rechargeable battery and two AA batteries, 3.5 mm TRS mini jack to 3.5 mm TRS mini jack (lockable) cable, 3.5 mm TRS mini jack (lockable) to XLR male cable and USB-C charging cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2023
- Item number564115
- Sales Unit1 piece(s)
- Capsule Type Condenser
- Microphone Colour Black
- Receiver Type mobile
- Frequency 823 MHz – 865 MHz
- Transmission system Digital
- Channels Lapel Microphone 1
- Dante No
- Transmitting SystemDigital
- Polar Patterncardioid
- DiversityYes
- Wireless Channels1
- Handheld Transmitter0
- Mic Model141783
- Pocket Transmitter1
- Microphone Plug Transmitter0
- Receiver Width in mm86 mm
- Power TransmitterLi-ion Battery
- Receiver Height in mm28 mm
- Multi ChannelNo
- Microphone TypeLapel Cardioid
- Receiver Depth in mm67 mm
- Receiver Weight in kg0,14 kg
- Transmitter Input3,5mm TRS
- Hot Shoe AdaptorNo
- Transmitting Power in mW10 mW
- Switching Bandwidth in MHz56 MHz
- Power Receiver2x AA
- Frequency DisplayYes
- Frequency ScanYes
- Removable AntennaYes
- Battery Status MonitorYes
- Output3,5mm TRS
- Charging SystemOptional
- RackkitNo
