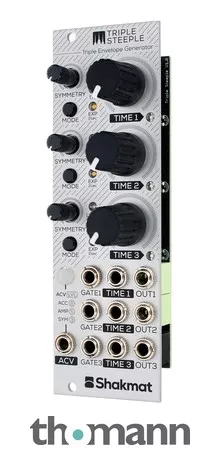

Eurorack Module
- 3-Channel envelope generator
- Per channel: Attack/decay envelope, adjustable via the Time (total time) and Symmetry (attack/decay ratio) controls
- 5 Selectable modes per channel: AD envelope, ASR envelope, looped, gated loop and clocked loop with clock divider
- Envelope shape switchable from linear to exponential
- CV input, assignable to three selectable parameters
- Output voltage adjustable from 0 V to +8 V
- Per channel: Gate input, CV input for time, envelope output
- Power consumption: 40 mA (+12 V) / 8 mA (-12 V)
- Width: 8 U
- Depth: 21 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2023
- Item number558484
- Sales Unit1 piece(s)
- Width 8 TE / HP
