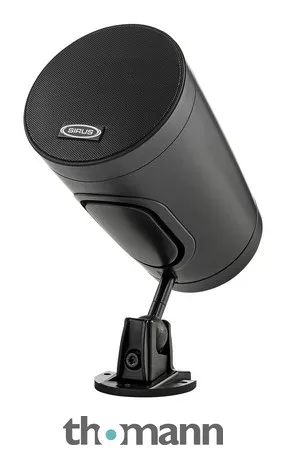

Installation Speaker with Bass Reflect Sound System
- Different brackets for mounting as pendant speakers, wall speakers or garden speakers
- OBE technology (Optimal Bass Enhancement Radiator) ensures deep and clear bass thanks to the passive membrane
- IP66 weatherproof
- Equipped with: 4″ bass speaker and 0.75″ tweeter
- Impedance: 8 Ohm
- Transformer for 100V/70V (2.5/5/10/20 W)
- Power rating: 20 W RMS / 40 W peak
- Maximum level: 83 dB
- Frequency range: 80 – 20,000 Hz
- Connection: Plug-in screw terminal
- Housing material: ABS plastic
- Dimensions (D x H): 148 x 230 mm
- Weight: 2.1 kg
- Colour: Black
- Includes wall bracket, pendulum bracket and spike for mounting in the ground
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2023
- Item number562012
- Sales Unit1 piece(s)
- Manufacturers Information Power Handling 40 W
- Impedance 8 Ohms
- Number of Woofers 1
- Woofers in Inch 4″
- Colour Black
- Width 148 mm
- Depth in mm 148 mm
- Height 230 mm
- Weight in kg 2,1 kg
- Monitor Angle No
- IP Class 66
- RMS Power20 W
- Depth148 mm
- TypePassive
- FlyableNo
- Maximal SPL83 dB
- Weight2,3 kg
- Number of Mid-Tone Speakers0
- Mid-Tone Speakers in Inchnone
- Woofer in inch4″
- Number of HT-Speakers1
- Number of Ways2-way
- HT-Speakers in Inch0,75″
- Stand FlangeNo
- Sound Pressure in dB83 dB
- TransformerYes
- 100V power tappings20/10/5/2,5
- ConnectorPhoenix Clamp
- Cabinet/IntallationCabinet
- Housing MaterialPlastic
- IP Classification66
- Selling per Piece/PairPiece
- ConstructionStandard Cabinet
- Wall MountYes
- Frequency Range (-3dB) from80 Hz
- Frequency Range (-3dB) to20000 Hz
- InputPhönix Socket
- OutputPhönix Sockets
- Horizontal Beam Angle45 °
- Vertical Beam Angle40 °
