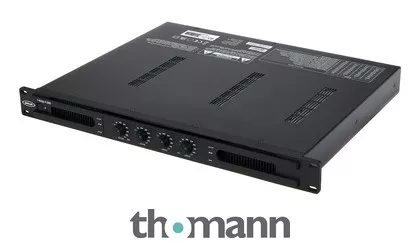

4 Channel Installation ampliier
- Class-D amplifier
- Low-noise and low-distortion due to high-current switching power
- Safety circuits such as thermal, short-circuit, power on/off mute, limiter
- Euroblock input and output
- Front-panel gain controls for easy access
- Signal, clip protection and power LEDs
- Euroblock contacts for disable, priority and error status
- Frequency range: 20 – 20,000 Hz
- Input impedance: 20 kOhm balanced / 10 kOhm unbalanced
- Dimensions (W x D x H): 483 x 360 x 44 mm
- Rack mount size: 19″ 1U
- Weight. 6.3 kg
Output:
- 4 x 250 W @ 8 Ohm
- 4 x 450 W @ 4 Ohm
- 4 x 800 W @ 2 Ohm (RMS)
- Bridge Mono Modus: 2 x 1600 W @ 4 Ohm
- 2 x 900 W @ 8 Ohm (RMS)
Operating Modes:
- ABCD stereo
- ABCD parallel
- AB + CD bridged
- AB + CD parallel
- AB stereo CD bridged
- AB parallel CD bridged
- AB stereo + CD Sub
- AB stereo + CD Sub (Input AB)
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2023
- Item number551990
- Sales Unit1 piece(s)
- Power (4 Ohms) per Channel 450 W
- Channels 4
- Rack Units 1 U
- Amp Class Class D
- 2 Ohm stable Yes
- DSP/Crossover Yes
- Convection cooling No
- Width483 mm
- Depth in mm360 mm
- Output per channel at 100 V0 W
- Height44 mm
- Output per channel at 4 Ohms450 W
- Weight6,3 kg
- ClassClass D
- Bridged ModeYes
- Link OutNo
- Temperature controlled fanYes
- Output Phoenix ClampsYes
- DSP / CrossoverYes
- Input Phönix clampYes
- Parallel InputYes
- Depth360 mm
- Output Phönix clampsYes
