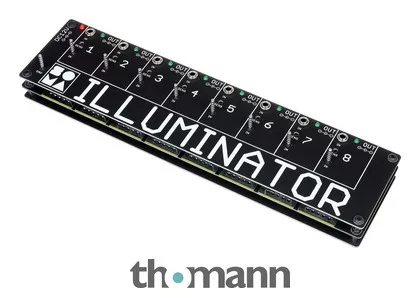

8-Channel converter for controlling LEDs and LED strips via analogue control voltages.
- Suitable for light shows in connection with modular systems, artistic exhibitions and installations as well as for creative experiments with LEDs, electric motors, electromagnets and more
- 8 Identical channels, each with CV input socket (3.5 mm jack, range: 0 – 5 V)
- CV pin (compatible with SOMA Pulsar-23 and Ornament-8)
- Adjustable sensitivity and DC output (5.5 mm hollow plug, 2.1 mm inside, polarity: plus inside)
- Output power per channel: 12V / 0.5 A (6 W)
- Peak output current for one channel: 1.5 A
- Maximum output power for all channels: 4 A / 48 W
- Power supply connection: 5.5 mm x 2.1 mm Barrel connector, polarity: centre positive
- Input voltage range: 3 – 20 V DC
- Dimensions (W x D x H): 275 x 70 x 40 mm
- Weight: 300 g
- Includes 8 LED strips 1.5m (2 x white 4000 K, 2 x red, 2 x green, 2 x blue), connecting cable (3 m), power supply 60 W (12 V DC, 5 A), mains cable
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number564548
- Sales Unit1 piece(s)
- Bass Pedal No
- Breath Controller No
- MIDI Controller No
- Filter No
- Effects Yes
- Sequencer No
- Product Specific Expansion No
- Construction TypeComplete Set
- Colour MixingRGBW
- Length [m]1,5 m
