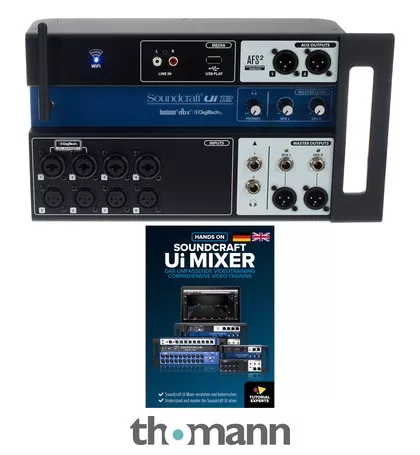

Bundle offer comprising
Soundcraft Ui12
12-Channel Digital Mixer
- Tablet / Smartphone / PC controlled
- With integrated stagebox and DSP
- Integrated Wi-Fi / ethernet
- Soundcraft preamps and soundcraft mixer algorithms
- Lexicon effects
- dbx AFS2 feedback suppression
- Digitech amp-modelling
- 2-track USB playback
- Storable gain and +48V status
- 120-band real-time analyser (on inputs and outputs)
- Input channels with parametric 4-band EQ, gate, compressor, de-esser and high-pass filter
- 3 Lexicon effect busses (reverb, delay, chorus)
- Output buses with 31-band graphic EQ and compressor
- Supports up to 10 control devices (tablets, phones, pcs) simultaneously
- Compatible with iOS, Android, Windows, Mac OS, Linux (via HTML5)
- Dimensions: 85 x 177 x 320 mm
- Weight: 2.29 kg
- Includes Ableton Live Lite
Connections:
- 8 mic/line inputs: 4x XLR, 4x XLR/jack combo (2 of which feature Digitech amp modelling)
- 1 RCA line output (stereo)
- 2-channel USB media player (MP3, WAV, AIFF playback)
- 2 main outputs: XLR
- 2 aux outputs: XLR
- 2 stereo headphone outputs: jack
Tutorial Experts Hands On Soundcraft Ui Mixer
Video Tutorial (Download)
- German and English language interactive video tutorial for PC, Mac and tablet
- Comprehensive training for all mixers in the Soundcraft Ui series
- 12 Hours of total playtime
- System requirements: Win7 or later / Mac OSX 10.6 or later, 1.6 GHz CPU, 0.5 GB RAM, 1920 x 1080 monitor, sound card
Contents:
- Hardware and connection options at a glance
- Operation via computer, tablet or touch screen
- Quick start – the most important things in a nutshell
- Channel strips
- Processors and effects in detail
- Working with aux sends
- Create monitor mixes
- Effects for aux channels
- Matching the PA to the room conditions with EQ
- Grouping options in detail
- Recording with the UI mixer
- UI-SessionMaker-App
- Ui mixer in conjunction with a DAW (Ui24)
- Working with presets and snapshots
- The offline editor in use
- Automix-Function
- Cascading mixers
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2022
- Item number549941
- Sales Unit1 piece(s)
- User Interface remote
- Number of faders 0
- DSP Input channels 12
- Number of Microphone Inputs 8
- Physical outputs 2
- Digital stagebox connection No
- Hotspot Singleband
- Multitrack Record No
- integratated Player/Rec via USB/SD stereo
- 19″ Rackmount No
- DSP Output Channels4
- Busses2
- Number of Mono Line Inputs4
- Number of Stereo Line Inputs0
- EthernetYes
- Soundcard interfaceNo
- Recorder FormatWAV/MP3
- RTAYes
- FX Processor3
- 31 Band EQ3
- Delay InputYes
- Delay OutputYes
- Matrix0
- DCA/VCA Groups0
- MIDI InterfaceNo
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Digital DanteNo
- 110V capableYes
- CaseNo
- Height177 mm
- Width320 mm
- Depth85 mm
- Weight2,3 kg
