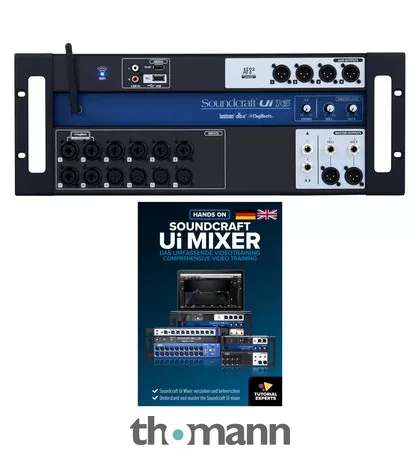

Bundle offer comprising
Soundcraft Ui16
16-Channel Digital Mixer
- Tablet/PC/smartphone controlled
- With integrated stagebox and DSP
- Integrated Wi-Fi and Ethernet
- Soundcraft preamps and soundcraft mixer algorithms
- 4 Lexicon effects buses: Reverb, Delay, Chorus, Room
- dbx AFS2 feedback suppression
- Digitech amp modelling
- 120 band realtime analyser (used in the inputs and outputs)
- Storable gain and +48V status
- 4-band parametric EQ, high-Pass filter, compressor, De-Esser and noise gate on input channels
- 31-band graphic EQ and compressor on all outputs
- 2-channel USB media player (MP3, WAV, AIFF)
- 2-channel USB audio recording directly onto device
- Supports up to 10 control devices (tablets, phones, pcs) simultaneously
- Cross-platform compatibility with iOS, android, Windows, Mac OS, and Linux devices (HTML5)
- Format: 19″ / 4 U
- Dimensions: 110 x 177 x 483 mm
- Weight: 3.61 kg
- Includes Ableton Live Lite
Connections:
- 12 Microphone/Line inputs: 4x XLR, 8x combo connector, including 2 instrument inputs (jack)
- 2 Line inputs via Cinch
- 2 Main outputs via XLR
- 4 Aux outputs via XLR
- 2 Stereo headphone outputs
Tutorial Experts Hands On Soundcraft Ui Mixer
Video Tutorial (Download)
- German and English language interactive video tutorial for PC, Mac and tablet
- Comprehensive training for all mixers in the Soundcraft Ui series
- 12 Hours of total playtime
- System requirements: Win7 or later / Mac OSX 10.6 or later, 1.6 GHz CPU, 0.5 GB RAM, 1920 x 1080 monitor, sound card
Contents:
- Hardware and connection options at a glance
- Operation via computer, tablet or touch screen
- Quick start – the most important things in a nutshell
- Channel strips
- Processors and effects in detail
- Working with aux sends
- Create monitor mixes
- Effects for aux channels
- Matching the PA to the room conditions with EQ
- Grouping options in detail
- Recording with the UI mixer
- UI-SessionMaker-App
- Ui mixer in conjunction with a DAW (Ui24)
- Working with presets and snapshots
- The offline editor in use
- Automix-Function
- Cascading mixers
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2022
- Item number549942
- Sales Unit1 piece(s)
- User Interface remote
- Number of faders 0
- DSP Input channels 16
- Number of Microphone Inputs 12
- Physical outputs 4
- Digital stagebox connection No
- Hotspot Singleband
- Multitrack Record No
- integratated Player/Rec via USB/SD stereo
- 19″ Rackmount Yes
- DSP Output Channels4
- Busses2
- Number of Mono Line Inputs6
- Number of Stereo Line Inputs0
- EthernetYes
- Soundcard interfaceNo
- Recorder FormatWAV/MP3
- RTAYes
- FX Processor4
- 31 Band EQ5
- Delay InputYes
- Delay OutputYes
- Matrix0
- DCA/VCA Groups0
- MIDI InterfaceNo
- Sample rate48 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBNo
- Digital MADINo
- Digital DanteNo
- 110V capableYes
- CaseNo
- Height177 mm
- Width483 mm
- Depth110 mm
- Weight3,6 kg
