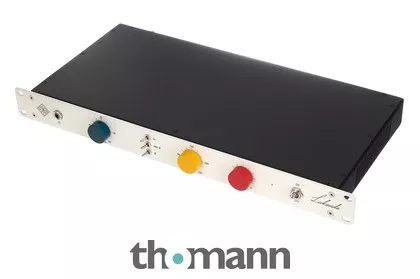

One-Channel Class A Preamp
- Fully discrete circuit
- Specially wound input and output transformers
- Gain Boost: 10-60 dB in 5 dB steps
- Induction-based high-pass filter: 40 Hz to 330 Hz
- 6.3 mm jack DI input on the front panel
- Microphone input impedance: 1.2 kOhm
- DI input impedance:> 1 MOhm
- Output impedance: <80 Ohm
- Frequency range: 20 Hz – 20,000 Hz (±0.5 dB) (40 dB gain)
- Equivalent input noise: 120 dB (40 dB gain)
- THD+N: <0.02% (40 dB gain)
- Cutoff-Filter 18 dB/Okt (-3 dB) = 40, 55, 70, 90, 120, 150, 180, 220, 270, 330 Hz
- Max. output: +27 dBu (0.2% THD)
- +31 dBu (1.5% THD)
- Dimensions: 483 x 216 x 44 mm
- Weight: 5.9 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceFebruary 2025
- Item number601889
- Sales Unit1 piece(s)
- Channels 1
- Number of microphone inputs 1
- Instrument input Yes
- Tubes No
- Compressor/Limiter No
- Equalizer No
- De-Esser No
- Phantom power Yes
- Phase Reverse No
- External effect loops No
- Analogue Outputs XLR
- Digitale Outputs 0
- Headphone connection No
- Level Meter No
- Design19″ / 1U
