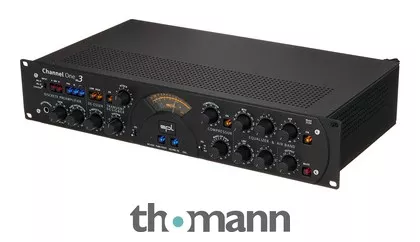

Channel Strip
- Microphone inputs and output Out 1 with Lundahl transformer
- 1-Channel tube preamp with tube saturation, de-esser, transient designer, compressor and EQ
- Discrete preamplifier with 68 dB gain
- Simultaneous connection of two microphones with separately switchable 48V phantom power supply for simple A/B comparisons without reconnection
- 20 dB Pad
- Phase inversion and high-pass filter switchable at 80 HZ
- 1x XLR line input with adjustable gain from -20 dB to +16 dB
- 1x 6.3 mm Jack instrument input adjustable from -6 dB to +30 dB
- Tube saturation determines the degree of tube saturation
- Tube Post option switches the Tube Saturatio after the EQ stage and before the output stage
- De-esser with adjustable S-reduction
- Transient Designer with attack and sustain controls for envelope editing
- Compressor with adjustable threshold via compression control and make-up gain
- Equaliser with semi-parametric low/mid and mid/high bands and Air Band with centre frequency at 19,000 kHz
- An illuminated VU meter visualises the input level, output level and gain reduction
- Two XLR outputs connected in parallel for back-up or emergency systems
- 1x XLR Preamp Out picks up the signal directly after pre-amplification and can be used simultaneously with Out 1 and 2
- Dimensions: 482 x 88 x 210 mm
- Weight: 6 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2024
- Item number582789
- Sales Unit1 piece(s)
- Channels 1
- Number of microphone inputs 2
- Instrument input Yes
- Tubes Yes
- Compressor/Limiter Yes
- Equalizer Yes
- De-Esser Yes
- Phantom power Yes
- Phase Reverse Yes
- External effect loops Yes
- Analogue Outputs XLR
- Digitale Outputs None
- Headphone connection Yes
- Level Meter No
- Design19″ / 2U
