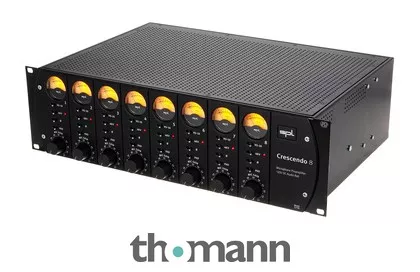

8-Channel Microphone Preamplifier
- With 120V technology
- Gain continuously adjustable from +18 to +70 dB
- Per channel switchable: 20 dB pad, 48V phantom power, phase reverse and high-pass filter at 120 Hz (6 dB/octave)
- VU-10 option to adjust the VU meter to very high levels
- Outputs: XLR output per channel or all 8 channels via DB25 connector (TASCAM standard)
- Frequency response (at 30 dB gain): 20 Hz – 100,000 Hz
- Maximum output level: 32.5 dBu
- Equivalent Input Noise (150 Ohm): -127.8 dBu
- Dimensions (W x H x D): 482 x 132 x 300 mm
- Weight: 9.5 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number563881
- Sales Unit1 piece(s)
- Channels 8
- Number of microphone inputs 8
- Instrument input No
- Tubes No
- Compressor/Limiter No
- Equalizer No
- De-Esser No
- Phantom power Yes
- Phase Reverse Yes
- External effect loops No
- Analogue Outputs Sub-D 25-pol, XLR
- Digitale Outputs None
- Headphone connection No
- Level Meter Yes
- Design19″ / 3U
