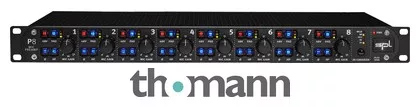

8-Channel Microphone Preamplifier and A/D Converter
- Discrete Microphone Preamplifier
- Per channel: individually switchable phantom power (48 V)
- PAD-Schalter: -20 dB
- Phase inversion function and a switchable analogue high-pass filter (6 dB per octave at 80 HZ)
- Frequency range: 15 Hz – 200,000 Hz
- Equivalent input noise: -124 dBu
- Noise (A-weighted, mic preamp, 150 O, 30 dB gain): -94 dB
- Conversion: 192 kHz / 24 bit
- 8 XLR microphone input
- 1 Sub-D25 line output
- 2 ADAT output
- Word Clock input and output
- Dimensions: 482 x 44 x 237 mm
- Weight: 4.15 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceNovember 2024
- Item number601911
- Sales Unit1 piece(s)
- Channels 8
- Number of microphone inputs 8
- Instrument input No
- Tubes No
- Compressor/Limiter No
- Equalizer No
- De-Esser No
- Phantom power Yes
- Phase Reverse Yes
- External effect loops No
- Analogue Outputs Sub-D 25-pol
- Headphone connection No
- Level Meter Yes
- Design19″ / 1U
