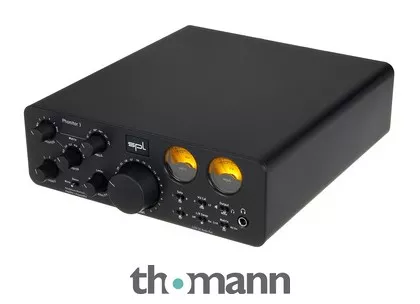

Headphone Amplifier and Monitor Controller with 120 V Technology
- 3 Analogue stereo inputs: 3x XLR stereo
- Output switch for easy switching from headphone to speaker playback and mute function in the centre position
- Phonitor matrix with crossfeed, speaker angle and centre level
- Mono/Stereo
- Laterality control: shifts the stereo image to the left or right to centre the stereo centre on the listening side
- Solo L/R
- Phase inversion for L and R
- L/R Swap
- 120 V technology
- Headphone output can be boosted by 12 dB via DIP switch on the rear panel
- Phonitor matrix can be output to preamp out
- Complete monitor controller
- Output power headphone output (1 kHz, 1 % THD, 250 Ohm): 2 x 5 W
- Output power headphone output (1 kHz, 1 % THD, 32 Ohm): 2 x 1 W
- Frequency range: 10 – 100,000 Hz
- Dynamic range: 134.5 dB
- Dimensions (W x H x D): 278 x 100 x 300 mm
- Weight: 3.9 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2024
- Item number590347
- Sales Unit1 piece(s)
- Number Of Monitoring Outputs (Stereo) 1
- Headphone connection 1
- Talkback Function No
- Built-in AD / DA converter Yes
- Incl. Remote control No
- Level Meter Yes
- Number of 2 track inputs 6
- Summing Function No
- Surround No
- Design Desktop
- Number of stereo channels1
- Output Level Adjustment Per ChannelYes
- Amount Of Inputs3
- Dimensions278 x 100 x 300
