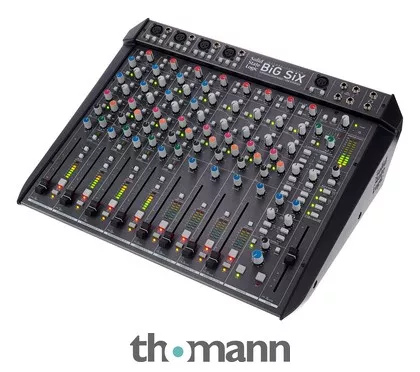

12-Channel Analogue Studio Mixer
- Balanced signal routing throughout with +27dBu headroom (except headphones)
- 12 Channels (4 mono, 4 stereos)
- 4 SuperAnalogue Mic Preamps with +48V/75Hz HPF
- 4 Stereo channels with Hi-Z impedance switch (1 MOhm)
- Mono channels: 3-band EQ with switchable HF/LF characteristics, SSL compressor and balanced insert
- Stereo channels: SSL 3-band EQ
- Peak response LED indicators
- 16-Channel AD/DA converter with USB-C interface for recording
- 18-Channel stereo SuperAnalogue summing
- Summing bus with balanced insert path
- SSL Bus Compressor (simplified version)
- 100 mm Fader
- Stereo mix bus summing for cascading mixers
- Two stereo cue sends
- Monitoring section with talkback, local monitoring, 2 stereo cue feeds
- 2 Headphone outputs with separate source selection
- Variable B-bus/mute circuit for simple overdubs
- “Listen Mic Compressor” with flexible routing
- Dimensions: 489.4 x 390.2 x 141.2 mm
- Weight: 6.8 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2022
- Item number526872
- Sales Unit1 piece(s)
- Simultaneous channels 12
- Mic-In 4
- Mono Line-in 4
- Stereo-In 4
- Hi-Z Input 4
- Phantom Power 48 V
- Master Out 6,3 mm bal.
- Aux Ways 2
- max. Pre Aux Channels 2
- PC Interface USB-C
- Audio Interface Input 0
- Audio Interface Output 0
- Multitrack-Recording No
- USB/SD Direct Record No
- Rec Out (Analog) No
- Low Cut Yes
- Inserts Yes
- Direct Out No
- Parametric No
- Compressor Yes
- Panorama Yes
- PFL Yes
- FX Processor 0
- USB Playback No
- Bluetooth Playback No
- Lamp connection No
- Footswitch No
- Matrixmixer No
- Bag No
- Zones 0
- 19″ Rackmount Optional
- Weight6,8 kg
- RackmountNo
