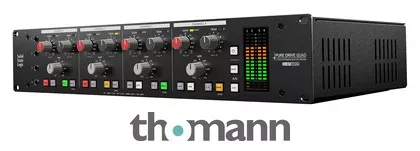

4-Channel Microphone Preamplifier
- AD converter (up to 192 kHz / 32-bit) and 12×12 USB audio interface (44.1 / 48 kHz – 4x analogue + 8 ADAT input channels, 4 AES + 8 ADAT output channels)
- SuperAnalogue PureDrive microphone preamp technology from the ORIGIN console
- Stepped gain control with up to +65 dB gain
- 31-Stage trim control with precise 1 dB steps
- 3 Modes for each preamp – Clean, Classic-Drive and Asymmetric-Drive
- Mic/Line input switching
- 4 Input impedance options for mic preamps
- +48V phantom power
- Polarity switching and tunable high-pass filter
- Cascadable via link connection (ADAT)
- Format: 19″ / 2U
Connections:
- 4x Combo mic / line input: XLR / 6.3 mm jack
- 4x Insert return / line input: Sub D-25
- 4x Hi-Z / DI instrument input unbalanced
- 4x Line output / insert send: XLR
- AES/EBU input and output: XLR
- ADAT input and output
- Word Clock input and output: BNC
- USB
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2024
- Item number578436
- Sales Unit1 piece(s)
- Channels 4
- Number of microphone inputs 4
- Instrument input Yes
- Tubes No
- Compressor/Limiter No
- Equalizer No
- De-Esser No
- Phantom power Yes
- Phase Reverse Yes
- External effect loops Yes
- Analogue Outputs XLR
- Digitale Outputs ADAT
- Headphone connection No
- Level Meter Yes
- Design19″ / 2U
