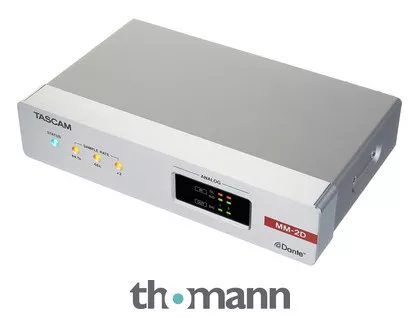

2-Channel Analogue/Dante/Analogue Converter With DSP Mixer
- It enables the transmission of audio signals via an Ethernet network
- Converter: 24-bit / 96 kHz
- Overload indicators and signal indicators for the analogue input signals
- Up to 50 presets can be stored
- Two different control programmes are available; for Windows, Mac, iOS and Android devices: Tascam DCP Connect for the system installers, EZ Connect for the end-users
- Supports AES67
- Powerful DSP mixer with a 4-band EQ on the input section
- Phantom power: +48 V
- Microphone/line inputs: 2 XLR, balanced
- Line outputs: 2 XLR, balanced
- 2 Gigabit Ethernet 1000BASE-T RJ45 ports
- Power supply via PoE or an external PS-P1220E power supply unit (power supply unit not included in the delivery)
- Dimensions (W x H x D): 214 x 45 x 136 mm
- Weight: 878 g
- Incl. mounting bracket for under table top mountings
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2022
- Item number538983
- Sales Unit1 piece(s)
- Amount Of Channels 2
- AD Conversion Yes
- DA Conversion Yes
- Max. Resolution Rate in Bits 24 bit
- Max. Sampling Rate in kHz 96 kHz
- S/PDIF Connecor No
- AES/EBU Connector No
- ADAT No
- Word clock No
- Number of analog inputs 2
- Number of Analog Outputs 2
- Headphone connection No
- Special FeaturesDante
