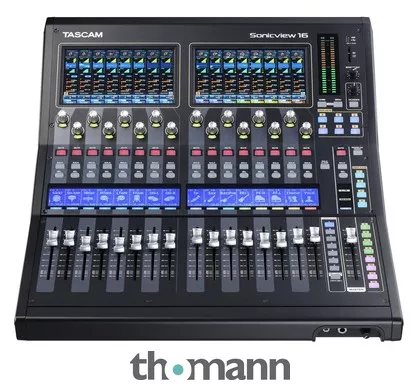

Digital Mixer
- AD/DA conversion: 32 bit / 96 kHz
- Tascam HDIA microphone preamplifier (High-Definition Instrumentation Architecture)
- FPGA mixing engine with 54-bit floating-point processing and 96 kHz sampling rate
- 44 Input channels (40 mono, 2 stereo)
- 22 Flexible output busses + stereo sum with 31-band graphic EQ
- Visual Interactive Ergonomic Workflow (VIEW) interface provides intuitive operation with three view modes
- Multiple simultaneous views via two 7-inch colour touchscreens
- Latency: 2 × Fs (20.8 µs) in mixing engine, 0.51 ms analogue-to-analogue
- Integrated Dante interface with 64 inputs and outputs (supports redundancy, AES67, DDM and SMPTE 2110)
- USB audio interface with 32 inputs and outputs
- Internal two-track recording/playback to SD card or USB drive
- Four multi-effects processors
- 16 + 1 100 mm motorised faders
- 16 Encoders with colour LEDs
- 16 LC displays with colour LEDs for channel names as well as displays for input level and dynamic level reduction
- 18 Individually assignable buttons
- Seven user-defined fader levels and eight DCA groups
- Gigabit Ethernet connection (1000 BaseT)
- Remote control and offline editing via Tascam Sonicview software for Windows, macOS and iOS
- compatible with Mixing Station app
- Two Tascam expansion slots (expansion cards available for 32-track SDXC recorders as well as MADI, AES/EBU and analogue signals – not included)
- Power switch with protection
- Dimensions (W x H x D): 472 x 228.1 x 554.4 mm
- Weight: 13 kg
Connections:
- 16x Balanced 3-pin XLR mic/line input
- 8x Balanced 6.3 mm jack line input
- Max. input level: +32 dBu
- 2x 6.3 mm jack insert
- 3-Pole XLR talkback input
- 2x RCA stereo inputs L/R
- 16x Balanced 3-pole XLR line output
- 6.3 mm jack stereo headphone output
- 3.5 mm jack stereo headphone output
- 2x 3-pole XLR monitor output
- Max. output level: +24 dBu
- 4-pole XLR lamp connection
- 6.3 mm jack Footswitch connector
- BNC socket Wordclock-In
- BNC socket Wordclock-Out/Thru
- 2x USB connector (type-B and type-C)
- GPIO with eight inputs/outputs via Sub-D25 connector
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceApril 2023
- Item number564429
- Sales Unit1 piece(s)
- Max.number of input channels 44
- Microphone Inputs 16
- Analog Line Inputs 16
- Analog Line Outputs 16
- Analog in/ out with plug-in card expandable Yes
- Digital in-/ outputs expandable Yes
- Word Clock Yes
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders17
- DSP Input channels0
- DSP Output Channels0
- Busses22
- Number of Microphone Inputs16
- Number of Mono Line Inputs16
- Number of Stereo Line Inputs2
- Physical outputs18
- Digital stagebox connectionDante
- EthernetYes
- HotspotNo
- Multitrack RecordOptional
- Special FeaturesRemote and Offline-Editing via Tascam Sonicview Software for Windows, macOS and iOS
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor4
- 31 Band EQ24
- Delay InputYes
- Matrix22
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots2
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBOptional
- Digital MADIOptional
- Digital DanteYes
- 110V capableYes
- CaseNo
- 19″ RackmountNo
- Width472 mm
- Weight13 kg
