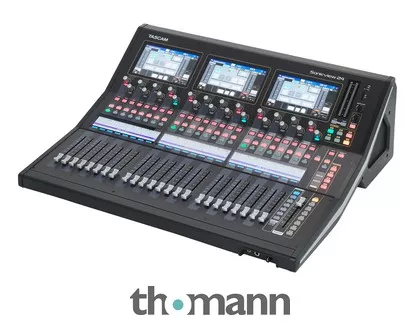

Digital Mixer
- AD/DA conversion: 32 bit / 96 kHz
- Tascam HDIA (High-Definition Instrumentation Architecture) mic preamp
- FPGA mixing engine with 54-bit float-point and 96kHz sampling rate
- 44 input channels (40 mono, 2 stereo)
- 22 flexible output buses + main L/R bus with 31-band graphic EQ
- Multiple displays with two 7″ colour touchscreens
- Visual Interactive Ergonomic Workflow (VIEW) interface enables intuitive operation with three view modes
- Latency: 2 × Fs (20.8µs) in mixing engine, 0.51ms analogue-to-analogue
- built-in Dante interface with 64 inputs and outputs (supports redundancy, AES67, DDM, and SMPTE 2110)
- USB audio interface with 32 inputs and outputs
- internal 2-track record/playback to SD card or USB flash drive
- four multi-effects processors
- 24 + 1 motorised faders (100mm)
- 24 encoder knobs with color LEDs
- 24 LC displays with color LEDs for channel name, input level and gain reduction meter
- 18 assignable user keys
- Seven custom fader layers and eight DCA groups
- Gigabit Ethernet connection (1000BaseT)
- In- / Outputs: 24x mic/line input (3-pin XLR, balanced)
- 8x line input (6.3mm jack, balanced), max. input level: +32dBu
- Input impedance: 5kOhm
- 2x insert (6.3mm jack)
- 1x talkback input (3-pin XLR)
- 2x Stereo input L/R (RCA)
- 16x Line output (3-pin XLR, balanced), output impedance: 100Ohm
- 2x stereo headphone output (1x 6.3mm jack, 1x 3.5mm jack)
- 2x monitor output (3-pin XLR), max. output level: +24dBu
- 1x lamp connector (4-pin XLR)
- 1x footswitch connector (6.3mm jack)
- 1x word clock input (BNC socket)
- 1x word clock out/thru (BNC socket)
- 2x USB connector (1x type-B, 1x type-C)
- 1 GPIO with 8 inputs/outputs via a Sub-D25 connector
- Remote control and offline editing via Tascam Sonicview software for Windows, MacOS and iOS
- Compatible with the Mixing Station app
- Two Tascam expansion slots (optional 32-track SDXC recorder, MADI, AES/EBU and analogue I/O cards available for the second slot)
- Power switch with protection
- Dimensions (W x H x D): 691 x 228 x 554 mm
- Weight: 18kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMay 2023
- Item number565493
- Sales Unit1 piece(s)
- Max.number of input channels 44
- Microphone Inputs 24
- Analog Line Inputs 24
- Analog Line Outputs 16
- Analog in/ out with plug-in card expandable Yes
- Digital in-/ outputs expandable Yes
- Word Clock Yes
- Motorfader Yes
- Computer interface USB, Ethernet
- MIDI-interface No
- User InterfacePhysical/remote
- Number of faders25
- DSP Input channels0
- DSP Output Channels0
- Busses22
- Number of Microphone Inputs24
- Number of Mono Line Inputs24
- Number of Stereo Line Inputs2
- Physical outputs18
- Digital stagebox connectionDante
- EthernetYes
- HotspotNo
- Special FeaturesRemote and Offline-Editing via Tascam Sonicview Software for Windows, macOS and iOS
- Multitrack RecordOptional
- Soundcard interfaceUSB-B
- integratated Player/Rec via USB/SDstereo
- Recorder FormatWAV
- Scribble StripsYes
- RTAYes
- FX Processor4
- 31 Band EQ24
- Delay InputYes
- Matrix22
- DCA/VCA Groups8
- MIDI InterfaceNo
- Sample rate96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots2
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBOptional
- Digital MADIOptional
- Digital DanteYes
- 110V capableYes
- CaseNo
- 19″ RackmountNo
- Height228 mm
- Width472 mm
- Depth554 mm
- Weight18 kg
