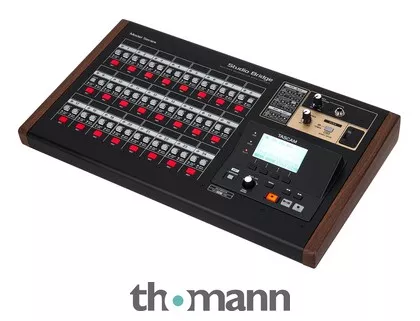

24-Track Audio Recorder and USB Audio Interface
- Perfect for use with analogue 8 bus mixing consoles
- 24 Analogue audio inputs and outputs for line level, each via three D25 connectors (Tascam standard)
- Built-in USB audio interface with 24 inputs and outputs
- Built-in USB MIDI interface with MIDI inputs and outputs
- DAW control for transport and record-arm via HUI/MCU
- Special settings field with level display (virtual meter bridge)
- Auto monitor function
- Punch recording on up to 10 tracks
- Track Swap function
- Recording format: WAV (BWF format) 44.1 / 48kHz, 16-bit / 24-bit
- Stores recordings on SD cards up to 512 GB (SDXC)
- Output of MIDI Timecode (MTC) and MIDI Clock with Song Position Pointer (SPP)
- Dimensions (W x H x D): 446.5 x 114.6 x 269.5 mm
- Weight: 4.5 kg
Connections:
- 24 Line inputs Sub-D25
- 24 Line outputs Sub-D25
- Headphone and monitor output: 6.3 mm jack
- Audio output for metronome click: 6.3 mm jack
- Foot switch pedal input: 6.3 mm jack
- MIDI in/out: 5-pin DIN
- USB-B port
- SD card slot
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number602898
- Sales Unit1 piece(s)
- Recording / Playback Channels 24X24
- Number of Mic Inputs 0
- Number of Line Inputs 24
- Instrument Inputs 24
- Number of Line Outs 24
- Headphone Outs 1
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors USB
- MIDI interface Yes
- Word Clock No
- Max. Sampling Rate in kHz 48 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply No
- USB Version 2.0
- Width 447 mm
- Depth 270 mm
- Height 115 mm
- Connection Format USB port Type B
- Number Of Tracks24
- USBYes
- Number Of Simultaneous Recording Tracks24
- 5-pole DIN MIDIYes
- Storage MediumSDXC
- Analogue Inputs24
- Fader0
- Analogue Outputs24
- Rotary Encoders0
- DesignDesktop
- Audio I/OYes
- Transport FunctionYes
- Footswitch connectionYes
- Included in deliveryPower cable
- Zero latency monitoringYes
