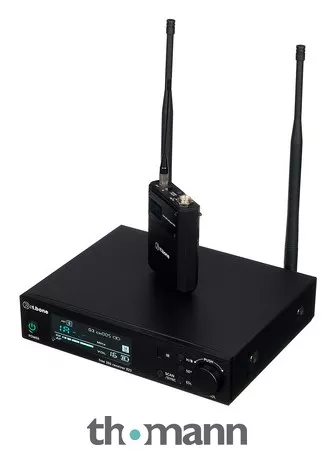

Wireless System with Pocket Transmitter
Receiver:
- Frequency band: 823–832 / 863–865 MHz
- 3 pre-programmed frequency groups, each with 10 channels
- 6 systems can be operated in parallel
- LCD display: Frequency group selection
- Battery indicator
- AF / RF signal strength
- The selected frequency and volume can be switched between the handheld transmitter and the pocket transmitter (the two channels cannot be used simultaneously)
- Infrared transmission of settings from receiver to transmitter
- Adjustable gain: 0-25 dB
- Range: 100 m (line-of-sight)
- Connections: XLR (balanced), 6.5 mm jack (unbalanced)
- 2 BNC antennas for Diversity
- Operates with a 12 V 1 A DC power supply
- Dimensions: (W x H x D) 210 x 45 x 193 mm
- Weight: 0.95 kg
- Includes rack mount
Pocket transmitter:
- 3-pin TQG connector
- Frequency band: 821–832 / 863–865 MHz
- Battery life: approx. 8 hours (talk time), approx. 12 hours (standby)
- LCD display: Selected frequency, battery indicator
- Option to scan the receiver frequency
- Detachable antenna
- Operates on 2 x 1.5 V AA batteries or rechargeable batteries (not included)
- Dimensions (W x D x H): 94 x 64 x 34 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJune 2026
- Item number613185
- Sales Unit1 piece(s)
- Guitar Channels 1
- Transmission Format Analog
- Frequency 823 MHz – 865 MHz
- Transmitter Type Pocket Transmitter
- Receiver Type Stationary
- Mountable Antenna BNC
- Charging System No
- Integrated Battery No
- Dante No
- Transmitting Technologyanalog
- ChannelsSingle
- DiversityYes
- TypeBundle
- Transmission typeUHF
- Transmitter battery poweredNo
- Transmission Power in mW10 mW
- Receiver Width (mm)210 mm
- Usable Frequencies30
- Receiver Height (mm)45 mm
- Switching bandwidth in MHz11 MHz
- Receiver Depth (mm)193 mm
- Receiver Weight (kg)0,95 kg
- Frequency DisplayYes
- Automatic Frequency SearchYes
- Receiver with AccuNo
- Battery Status DisplayYes
- Battery MonitorYes
- Transmitter Input3-Pol TQG
- Receiver OutputXLR (6,3 mm unbal.)
- OutputXLR
- Receiver Width in mm210 mm
- Receiver Height in mm45 mm
- Receiver Depth in mm193 mm
- RackkitYes
- Receiver Weight in kg0,95 kg
