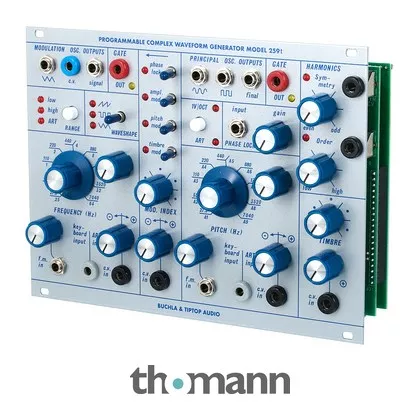

Eurorack Module
- Programmable Complex Waveform Generator
- Analogue Dual-Oscillator with Waveshaper
- Principal and modulation oscillator, each with a control for coarse and fine tuning
- Two FM inputs with attenuator and pitch CV input (V/octave)
- Modulation bus for amplitude, pitch and timbre modulation as well as oscillator synchronisation with adjustable modulation index and CV input with bipolar attenuator
- Waveshaper with harmonics and timbre section and three CV inputs
- Waveform outputs for both oscillators and a sum output
- Compatible with Tiptop Audio ART modules
- Power requirement: 260 mA (+12 V) / 105 mA (-12 V)
- Depth: 34 HP
- Depth: 25 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number602307
- Sales Unit1 piece(s)
- Analogue Yes
- Digital No
- Width 34 TE / HP
