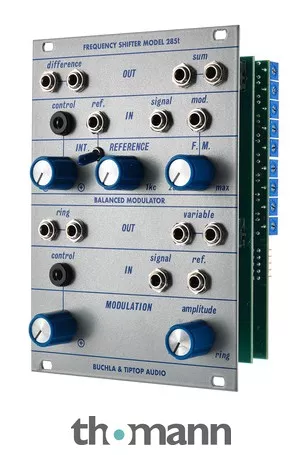

Eurorack Module
- Analogue frequency shifter and ring modulator for processing audio signals
- Internal oscillator with tuning control (range: 0 – 1000 Hz) and two CV inputs with attenuators
- Signal input and switchable input for external reference oscillator
- Two sum and difference outputs for the processed signal
- Ring modulator section with two signal inputs (signal and reference)
- Adjustable crossfade from the unprocessed input signal via amplitude modulation to ring modulation
- Can be modulated via CV input with bipolar attenuator
- Two signal outputs for the variable output signal and the ring modulator
- Power requirement: 50 mA (+12 V) / 44 mA (-12 V)
- Width: 18 HP
- Depth: 45 mm
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceDecember 2024
- Item number605443
- Sales Unit1 piece(s)
- Reverb Ne
- Delay No
- Multieffect Yes
- Misc. Effects Yes
- Width 18 TE / HP
