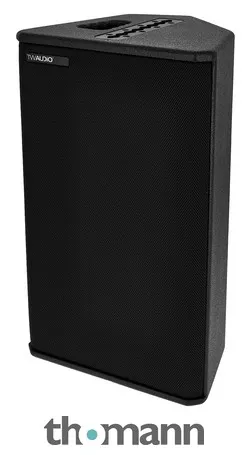

Passive 12″ Point-Source Multi-Function Speaker
- Right-side version
- Power rating: 450 W AES, 1400 W Peak
- Equipped with: One 12″ long-throw chassis, one 1.4″ compression driver with 3″ diaphragm
- Max. sound pressure level: 132 dB SPL
- Frequency range: 60 Hz – 19,000 Hz
- Dispersion angle (H x V): 75° x 50º
- Impedance: 8 ohms
- Connectors: Two speakON NL4
- Housing material: Multiplex birch wood
- Two handles for ergonomic handling of the speaker
- Slanted monitor angle
- 35 mm stand flange mount
- Three Air-Cargo rigging rails
- Dimensions (W x H x D): 360 x 606 x 315 mm
- Weight: 20.2 kg
- Colour: Black
Note: Operation recommended with dedicated TW AUDiO presets on LAB groups, Powersoft or Dynacord TGX, IPX and L-Series amplifiers
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2025
- Item number607328
- Sales Unit1 piece(s)
- Manufacturers Information Power Handling 1400 W
- Impedance 8 Ohms
- Number of Woofers 1
- Woofers in Inch 12″
- Colour Black
- Width 360 mm
- Depth in mm 315 mm
- Height 606 mm
- Weight in kg 20,2 kg
- Monitor Angle Yes
- IP Class None
- RMS Power700 W
- FlyableFlying Bracket
- Maximal SPL132 dB
- Number of Mid-Tone Speakers0
- Mid-Tone Speakers in Inchnone
- Number of HT-Speakers1
- Stand Flange35 mm
- HT-Speakers in Inch1,4″
- Number of Ways2-Way
- Housing MaterialWood
- ConstructionStandard Cabinet
- InputSpeaker-Twist
- OutputSpeaker-Twist
- Frequency Range (-10dB) from60 Hz
- Horizontal Beam Angle70 °
- Frequency Range (-10dB) to19000 Hz
- Vertical Beam Angle50 °
