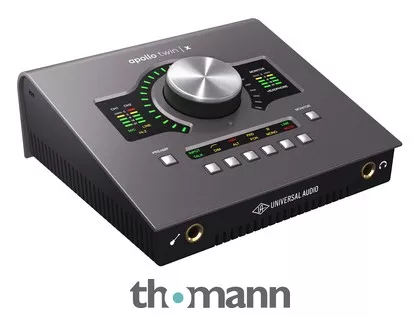

10 x 6 USB 3.0 Audio Interface
- Heritage Edition
- With UAD-2 DUO processor for virtually latency-free recording via plug-in emulations of classic compressors, EQs, tape machines, mic preamps and guitar amps
- 24 Bit / 192 kHz AD/DA converter
- 2 Unison microphone preamps
- +48 V phantom power
- Built-in talkback microphone
- Dynamic range: 127 dB
- Monitor functions with controls for mono, mute, DIM and ALT
- Construction: Desktop
- For Windows 10 or 11 (64-bit editions)
- Incl. software bundles Desktop Heritage Edition and Realtime Analog Classics
Connections:
- 2 mic/line combo inputs: XLR / 6.3 mm jack
- Hi-Z instrument input: 6.3 mm jack
- 2 line outputs: 6.3 mm jack
- 2 x monitor outputs: 6.3 mm jack
- ADAT / SPDIF input and output (optical)
- Stereo headphone output: 6.3 mm jack
- USB 3.0 port
- Input for external power supply
Note: Requires USB-C cable, not included
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceAugust 2023
- Item number571436
- Sales Unit1 piece(s)
- Recording / Playback Channels 10×6
- Number of Mic Inputs 2
- Number of Line Inputs 2
- Instrument Inputs 1
- Number of Line Outs 4
- Headphone Outs 1
- Phantom Power Yes
- Number of S/PDIF Connectors 1
- Number of ADAT Connectors 1
- Numer of AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI interface No
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- USB Bus-Powered No
- Incl. power supply Yes
- USB Version 3.0
- Width 160 mm
- Depth 149 mm
- Height 66 mm
- Connection Format USB port Type C
- Included in deliveryPower Supply, Power Cable
- Zero latency monitoringYes
