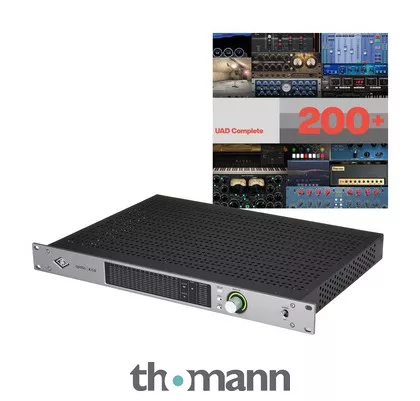

16 x 16 Thunderbolt 3 Audio Interface with Dante
- 24 Bit / 192 kHz
- 6-Core SHARC DSP for internal UAD real-time processing
- 16 Channel immersive audio mixes for Dolby Atmos, Auro-3D, Sony 360 Reality Audio and others
- LED meter
- 2 Function buttons
- Format: 19″/ 1 U
- Includes UAD Complete Edition Plugin-Bundle
Connections
- 2x Monitor output: XLR
- 2x RJ45 for DANTE
- AES/EBU input and output: XLR
- Word clock input and output: BNC
- 2 x Thunderbolt 3
- Connection for external power supply
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJuly 2024
- Item number593920
- Sales Unit1 piece(s)
- Recording / Playback Channels 16×16
- Number of Mic Inputs 0
- Number of Line Inputs 0
- Number of Instrument Inputs 0
- Number of Line Outputs 2
- Headphone Outs 0
- Phantom Power No
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 0
- AES/EBU Connectors 2
- Number of MADI Connectors 0
- Ethernet 2
- Other Connectors TB 3 (Article 430801)
- MIDI Connectors No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- Bus-Powered No
- Incl. Power Supply Yes
- Windows Thunderbolt driver Yes
- Thunderbolt Version 3
- Width in mm 483 mm
- Depth in mm 308 mm
- Height in mm 44 mm
