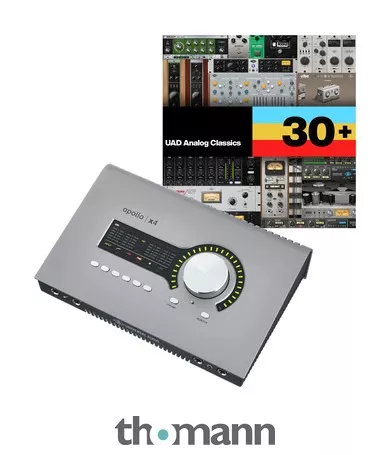

12 x 18 Thunderbolt 3 Audio Interface
- With UAD-2 Quad processor
- 24 bit / 192 kHz AD/DA converter
- Four Unison microphone preamps
- Auto gain function
- +48 V phantom power
- Built-in talkback microphone
- Dynamic range: 127 dB
- Monitor functions with controls for mono, mute, DIM and ALT
- Design: Desktop
- For Mac OS and Windows
- Dimensions (W x H x D): 233 x 66 x 151 mm
- Weight: 1.46 kg
- Includes UAD Analog Classics Plugin Bundle
- Suitable case: Art. 495524 (not included)
Connectors:
- Microphone / line combo inputs: 4 x XLR / 6.3 mm jack
- Hi-Z instrument inputs: 2 x 6.3 mm jack
- Line outputs: 4 x 6.3 mm jack
- Monitor outputs: 2 x 6.3 mm jack
- ADAT / SPDIF input and output optical
- Stereo headphone outputs: 2 x 6.3 mm jack
- Thunderbolt 3 connection (Thunderbolt cable not included)
- Input for external power supply
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number600549
- Sales Unit1 piece(s)
- Recording / Playback Channels 12×18
- Number of Mic Inputs 4
- Number of Line Inputs 4
- Number of Instrument Inputs 2
- Number of Line Outputs 6
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 1
- Number of ADAT Connectors 1
- AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI Connectors No
- Word Clock No
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- Bus-Powered No
- Incl. Power Supply Yes
- Windows Thunderbolt driver Yes
- Thunderbolt Version 3
- Width in mm 280 mm
- Depth in mm 200 mm
- Height in mm 130 mm
