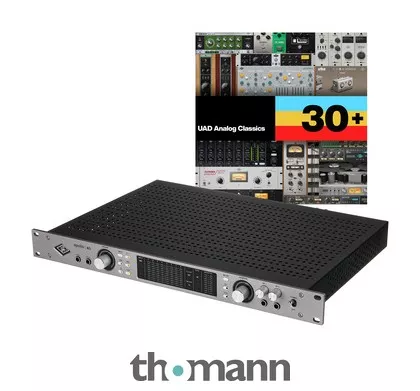

16 x 22 Thunderbolt 3 Audio Interface
- 24 Bit / 192 kHz
- 6-Core SHARC DSP for internal UAD real-time processing
- 2 Unison microphone preamps
- Auto Gain function
- +48 V phantom power
- Pad
- Low-cut
- Phase reverse
- Switch for monitor switching
- Dim or mono assignable function button
- LED meter
- Built-in talkback microphone
- Support for surround formats up to 5.1 with speaker calibration and downmix
- Dual Crystal Clocking for a low-jitter environment and pure artefact-free recordings and stable stereo imaging
- Includes UAD Analog Classics Plug-in Bundle for Mac/Windows
- Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
- Up to 4 Apollos cascadable with Thunderbolt connection
- Format: 19″ / 1U
- Includes external power supply
Connectors:
- 2 Microphone inputs: XLR
- 2 Hi-Z inputs: 6.3 mm jack
- 6 Line inputs: 6.3 mm jack
- 2 Monitor outputs: 6.3 mm jack
- 6 Line outputs: 6.3 mm jack
- S/PDIF input and output: coaxial
- 2 ADAT inputs and outputs
- Word Clock input and output: BNC
- 2 Headphone connections: 6.3 mm stereo jack
- 2 Thunderbolt 3
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number598500
- Sales Unit1 piece(s)
- Recording / Playback Channels 16×22
- Number of Mic Inputs 2
- Number of Line Inputs 6
- Number of Instrument Inputs 2
- Number of Line Outputs 8
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 1
- Number of ADAT Connectors 2
- AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI Connectors No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- Bus-Powered No
- Incl. Power Supply Yes
- Windows Thunderbolt driver Yes
- Thunderbolt Version 3
- Width in mm 483 mm
- Depth in mm 308 mm
- Height in mm 44 mm
