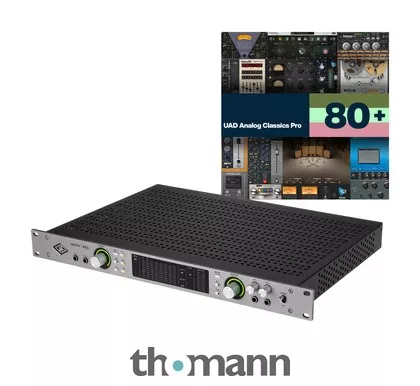

16 x 22 Thunderbolt 3 Audio Interface
- 24 Bit / 192 kHz
- 6-Core SHARC DSP for internal UAD real-time processing
- 8 Unison microphone preamps
- Auto Gain function
- +48 V phantom power
- Pad
- Low-cut
- Phase reverse
- Switch for monitor switching
- Dim or mono assignable function button
- LED meter
- Built-in talkback microphone
- Support for surround formats up to 7.1 with speaker calibration and downmix
- Dual crystal clocking for low-jitter environment and pure, artifact-free recording and stable stereo imaging
- For Mac and Windows
- Compatible with Thunderbolt 2 with optional Thunderbolt 2 to 3 adapter (not included)
- Up to 4 Apollos cascadable with Thunderbolt connection
- Format: 19″ / 1 U
- Includes UAD Analog Classics Pro plug-in bundle and external power supply
Connectors:
- Microphone / line combo inputs: 8 x XLR / 6.3 mm jack
- Hi-Z inputs: 2 x 6.3 mm jack
- Line inputs: 8 x Sub-D25
- Monitor outputs: 2 x 6.3 mm jack
- Line outputs: 8 x Sub-D25
- 2 x ADAT inputs and outputs
- BNC Word clock input and output
- Stereo headphone connections: 2 x 6.3 mm jack
- 2 x Thunderbolt 3 sockets
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceOctober 2024
- Item number600535
- Sales Unit1 piece(s)
- Recording / Playback Channels 16×22
- Number of Mic Inputs 8
- Number of Line Inputs 8
- Number of Instrument Inputs 2
- Number of Line Outputs 10
- Headphone Outs 2
- Phantom Power Yes
- Number of S/PDIF Connectors 0
- Number of ADAT Connectors 2
- AES/EBU Connectors 0
- Number of MADI Connectors 0
- Ethernet 0
- Other Connectors None
- MIDI Connectors No
- Word Clock 1xIn, 1xOut
- Max. Sampling Rate in kHz 192 kHz
- Max. Resolution Rate in Bits 24 bit
- Bus-Powered No
- Incl. Power Supply Yes
- Windows Thunderbolt driver Yes
- Thunderbolt Version 3
- Width in mm 483 mm
- Depth in mm 308 mm
- Height in mm 44 mm
