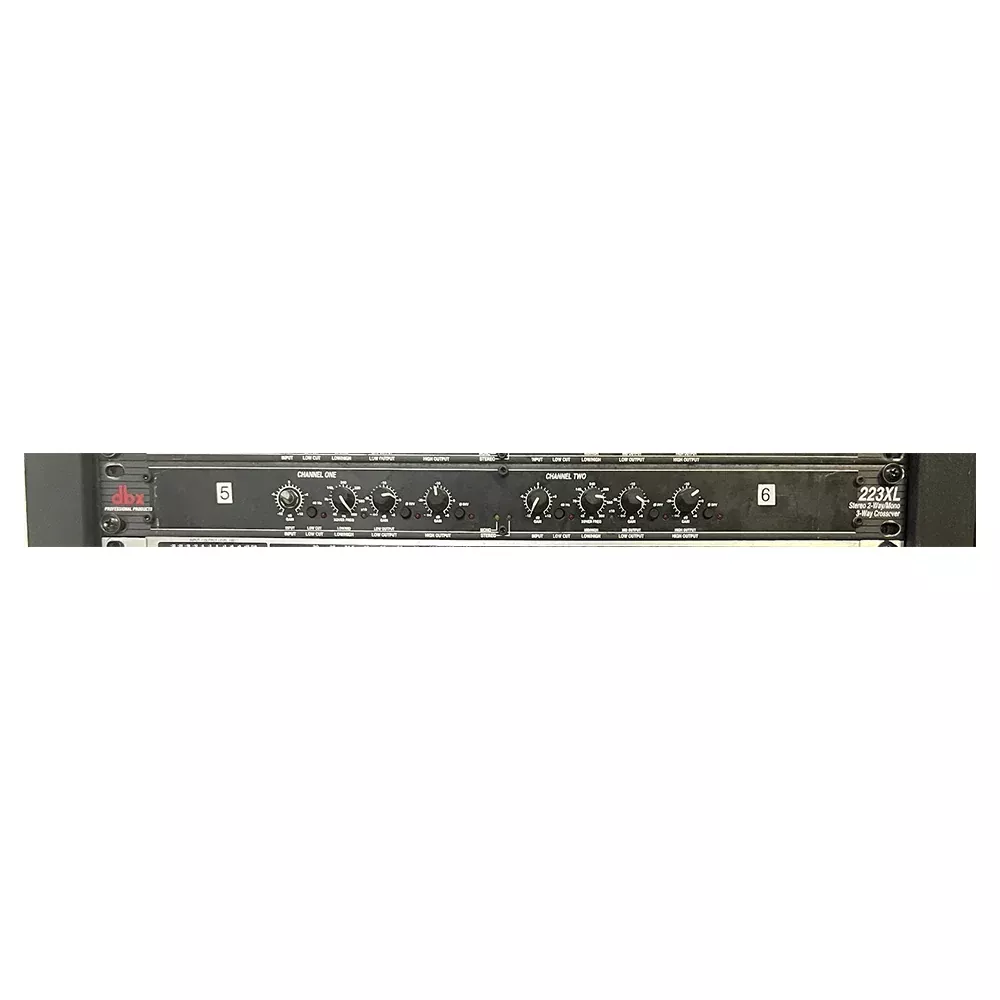

Take your sound system to the next level with the dbx 223XL crossover. Designed as the heart of your PA setup, it delivers cleaner, more powerful audio through your speakers. Compact in a 1U rack size and priced within reach, the 223XL offers flexible operation in 2-channel stereo or 3-channel mono, complete with a low-frequency summed output for subwoofers.
Both channels feature a 40Hz highpass filter and phase-reverse switches on all outputs, giving you precise control over every aspect of your mix. Individual output level controls make it easy to tailor your sound for any venue. Built with professional-grade components, the 223XL employs 24dB-per-octave Linkwitz-Riley filters—the industry standard for crossover design. Unlock the full potential of your PA system with the dbx 223XL.
Specifications:
- XLR balanced ins and outs
- Mode switch for stereo 2-way or mono 3-way operation
- Low frequency summed (subwoofer) output
- x10 range switch on both channels
- 40Hz high pass (low cut) filter both channels
- Phase reverse switch on all outputs
- Individual level controls on all outputs
- 24dB per octave Linkwitz-Riley filters (the professional standard)
- Stereo/Mono status LEDs indicate the selected mode
- dbx 2 year parts and labor as standard
- CSA NRTL/C approved
- CE compliant
