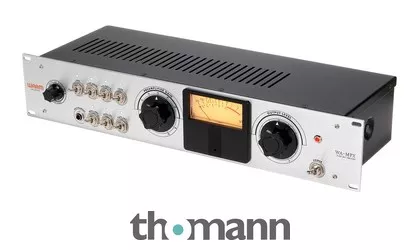

1-Channel Microphone and Instrument Preamp
- Fully discrete, hand-built design with 3 tubes per channel
- Tape saturation adds harmonic distortion and compression
- 90 dB gain
- CineMag USA transformers
- High quality (2x) 12AX7 and (1x) 12AU7 vacuum tubes
- High Gain control activates the third tube in the circuit for an additional 20 dB (from 70 dB to 90 dB)
- 48 V phantom power and polarity switch
- “Tone” circuit changes the impedance of the input transformer
- 80 Hz high-pass filter
- 2 kHz low-pass filter
- Inputs: XLR microphone input, TS jack instrument input and TRS jack line input
- Outputs: XLR / TRS line level
- VU meter level meter
- Frequency response: 20 Hz – 20 kHz
- Dimensions (W x D x H): 483 x 179 x 89 mm
- Weight: 3.7 kg
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceMarch 2023
- Item number562525
- Sales Unit1 piece(s)
- Channels 1
- Number of microphone inputs 1
- Instrument input Yes
- Tubes Yes
- Compressor/Limiter No
- Equalizer No
- De-Esser No
- Phantom power Yes
- Phase Reverse Yes
- External effect loops No
- Analogue Outputs XLR,jack
- Digitale Outputs None
- Headphone connection No
- Level Meter Yes
- Design19″ / 2U
