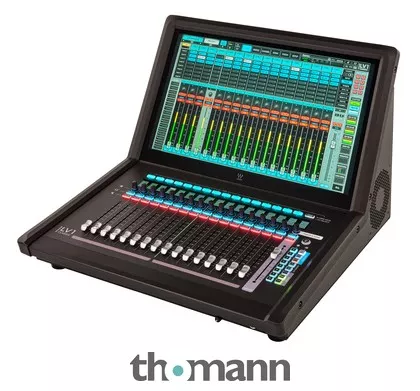

Digital Live Mixer
- 64 mono/stereo inputs
- 44 mono/stereo busses
- 32-bit Float Mix Engine with 44.1-96 kHz
- Latency: 0.8 ms
- 16 waves signature preamplifier
- 12 line outputs
- Eight mute groups and 16x link DCAs with spill function
- One AES3 In
- Two AES3 Out
- Four SoundGrid connections: 2x Ethercon, 2x RJ45
- One HDMI output
- 21.5″ Multi-Touchscreen
- 17x 100 mm Alps-Motorfader
- 17 encoders with mini display and LCD display
- Select/Mute/Solo buttons per channel
- 16 layers with utility buttons and tempo pad
- 16+2 user-customisable shortcut buttons
- Processing with compressor, EQ, Dynamic EQ, Vocal Tuning, Feedback Control, Saturation & FX
- 8-slot rack for eight plug-ins per channel
- Immersive in-ear mixing eMo IEM (software upgrade required, not included)
- Dugan automixing (software upgrade required, not included)
- Built-In Ultra-Low-Latency SoundGrid Server
- Expandable to up to 14 SoundGrid compatible devices including Dante and MADI converters
- Recording of 16 tracks locally on USB and 128 tracks on remote computer possible
- Dual Power Supply
- Remote Control Apps: MyFOH, MyMon
- Dimensions (W x H x D): 559 x 401 x 561 mm
- Weight: 17.2 kg
- Includes Waves Tune Real-Time, F6 Dynamic EQ, eMo Q4 EQ, eMo D5 Dynamics, eMo F4 Filter, GEQ, X-FDBK, Primary Source Expander, R-Comp, R-Bass, H-Delay, Doubler, R-Verb, TrueVerb, GTR3, Magma Tube Channel Strip, eMo Generator
3030-Day Money-Back Guarantee33-Year Thomann Warranty
- Available sinceJanuary 2025
- Item number599760
- Sales Unit1 piece(s)
- User Interface Physical/remote
- Number of faders 17
- DSP Input channels 64
- Number of Microphone Inputs 16
- Physical outputs 12
- Digital stagebox connection Soundgrid
- Hotspot No
- Multitrack Record Yes
- integratated Player/Rec via USB/SD Multitrack
- 19″ Rackmount No
- DSP Output Channels44
- Busses44
- Number of Mono Line Inputs16
- Number of Stereo Line Inputs0
- EthernetYes
- Soundcard interfaceEthernet
- Recorder FormatWAV/MP3
- Scribble StripsYes
- RTAYes
- FX Processor8
- 31 Band EQ44
- Delay InputYes
- Delay OutputYes
- Matrix8
- DCA/VCA Groups16
- MIDI InterfaceNo
- Sample rate44,1/48/96 kHz
- Monitor AppsYes
- Separate Personal Monitor systemNo
- Expansion Card slots0
- Digital ADATNo
- Digital SPDIFNo
- Digital AES3/ASESEBYes
- Digital MADINo
- Digital DanteNo
- 110V capableYes
- CaseIncluded
- Height401 mm
- Width559 mm
- Depth561 mm
- Weight17,2 kg
